The 2026 Marlin 5 Gen 3 XS FURY RED is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.

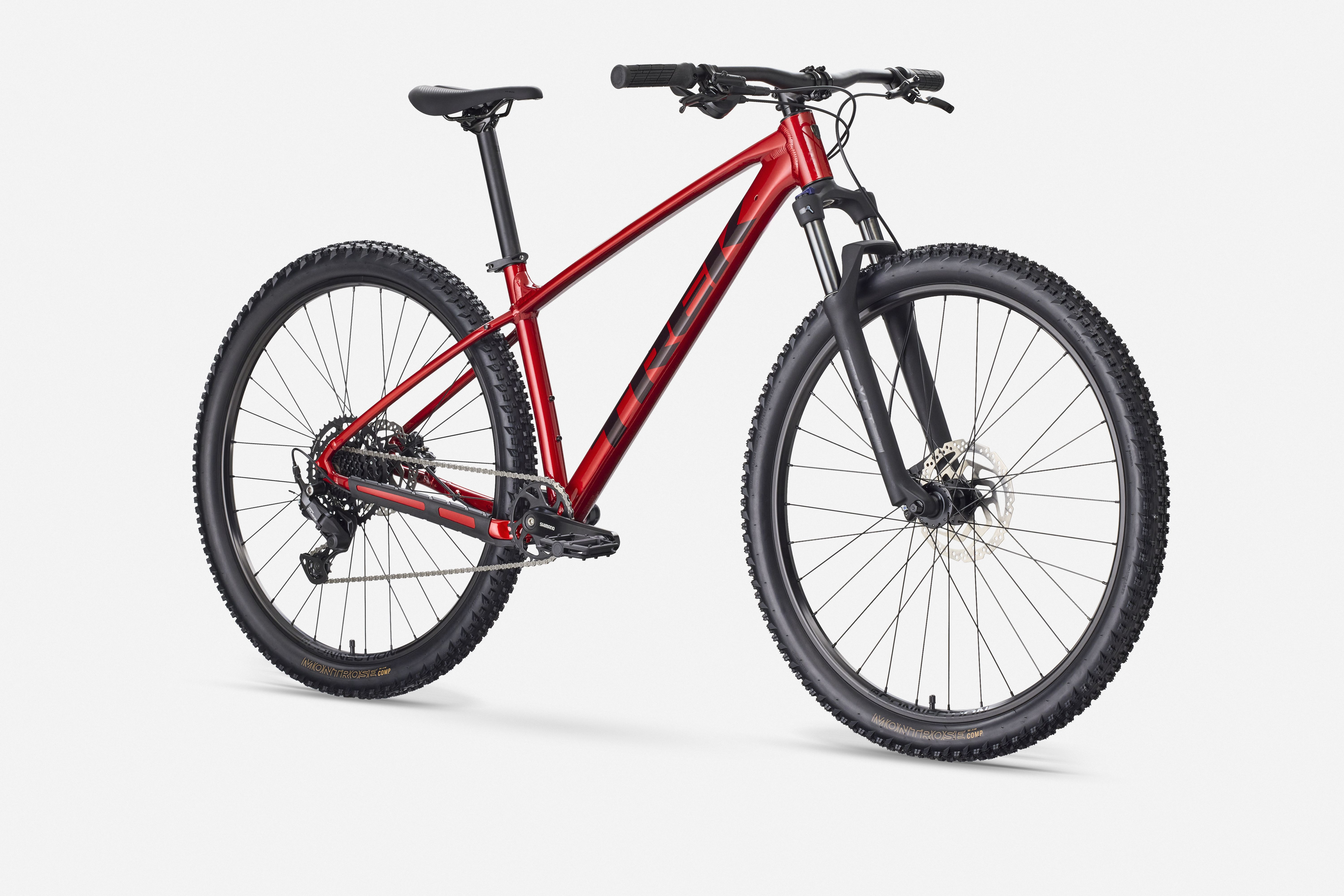

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don't have the same issues with standover height.
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you're on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
High tech, high value

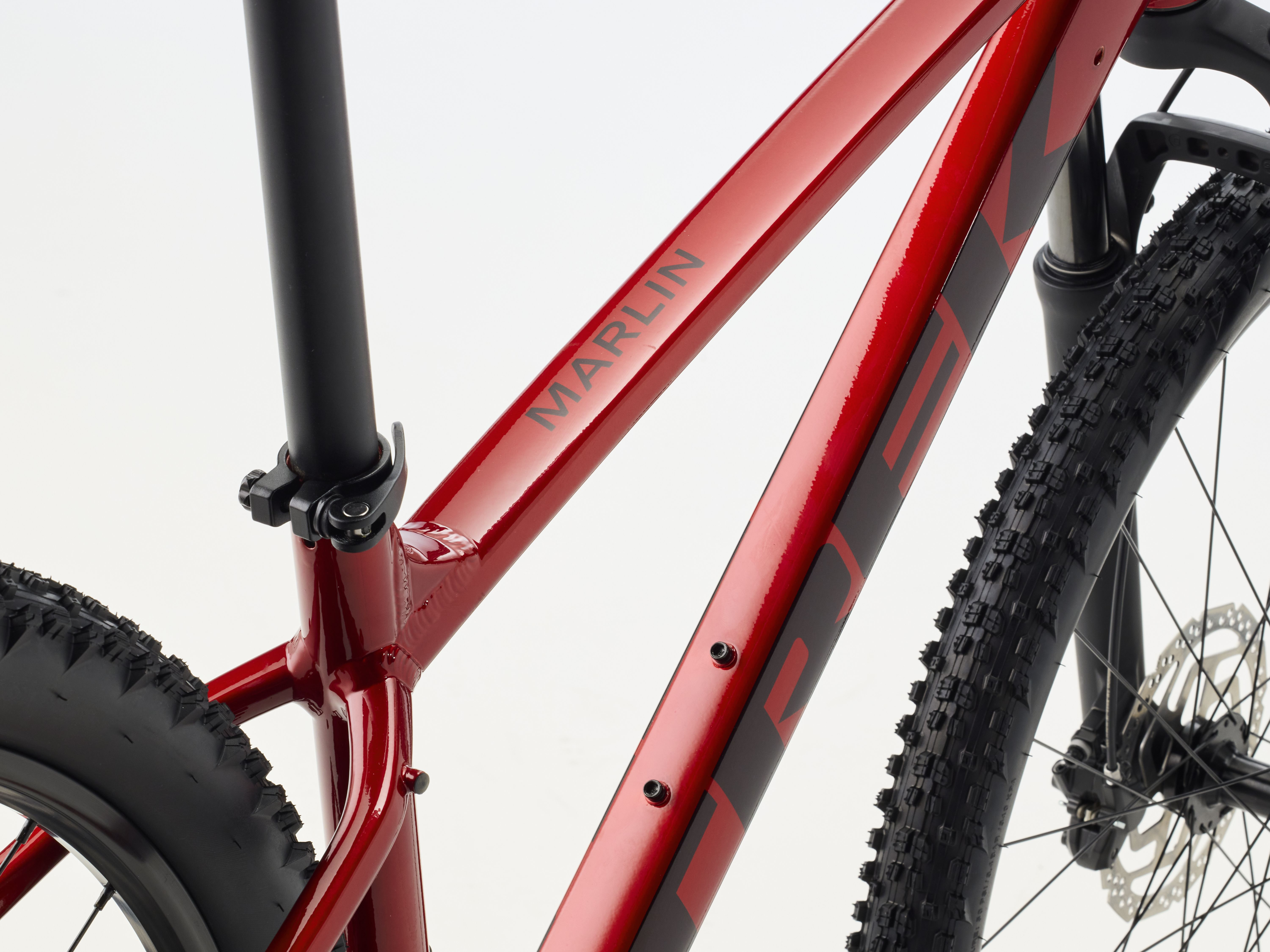

Marlin looks and feels great. It's packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano's new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
A better way to produce aluminium
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting - along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.
size-table
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 145 - 155 cm 4'9" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 74 - 78 cm 29" - 31" |
| M | 165 - 177 cm 5'5" - 5'10" | 79 - 83 cm 31" - 33" |
| ML | 173 - 180 cm 5'8" - 5'11" | 81 - 86 cm 32" - 34" |
| L | 177 - 188 cm 5'10" - 6'2" | 84 - 89 cm 33" - 35" |
| XL | 188 - 195 cm 6'2" - 6'5" | 89 - 91 cm 35" - 36" |
| 2XL | 195 - 203 cm 6'5" - 6'8" | 91 - 97 cm 36" - 38" |
| Frame | Size XS, Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| Fork | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5'' wheel, 100 mm QR, |
| Wheel Size | Front 27.5 / Rear 27.5 |
| Wheels | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve Formula DC-20, alloy, 6-bolt, 100x5 mm Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Tyres | Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" |
| Shifter | Shimano U4000, 9-speed Shimano U4000, 9 speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crank | Shimano CUES U4001, 32T, 52mm chain line, 170 mm length Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedals | VP-536 nylon platform |
| Front Brake | Shimano RT26, 6-bolt, 160 mm |
| Rear Brake | Shimano RT26, 6-bolt, 160 mm |
| Handlebar | Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Headset | Semi-integrated, 1-1/8" |
| Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Weight | 15.1 kg |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
