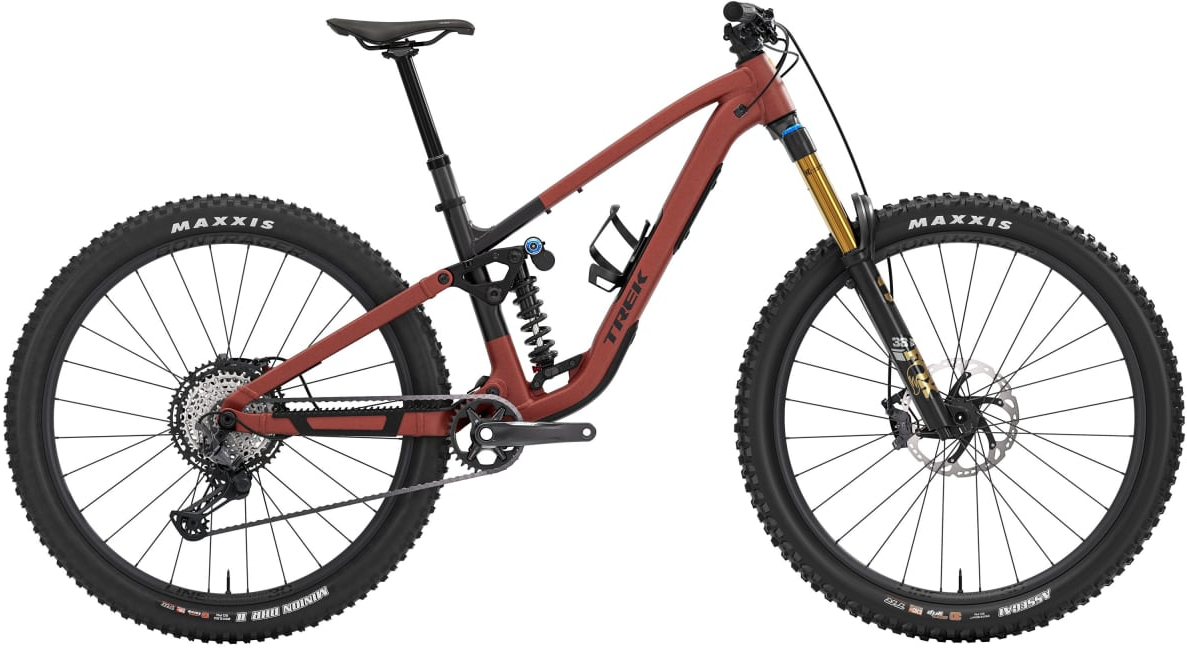

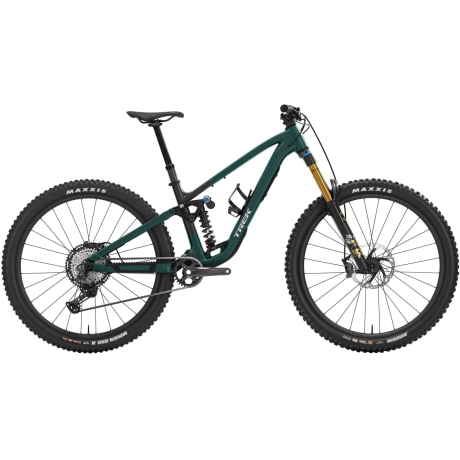

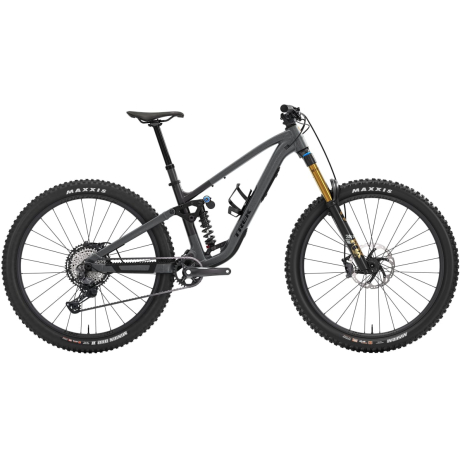

Trek Fuel LX 9 XT Gen 7

Name: Trek 2026 Fuel LX 9 XT Gen 7
Brand: Trek
SKU: 5340486
Price: 5000.00 GBP
Availability: OutOfStock

£5,000.00

Finance available with Novuna Personal Finance

Select a Colour:

Select a Size:

Out of Stock ( Call for Availability )

The Fuel LX 9 XT is a hard-charging trail bike built for rowdy laps and hair-raising descents. It pairs an adaptable Alpha NEXT Platinum aluminium frame with a Fox Factory 38 fork and DHX2 coil shock (160 mm rear, 170 mm front) for rolling into steeper than steep lines packed with wheel-eating terrain. A mechanical Shimano XT 12-speed drivetrain gives you clean, reliable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.

Specification

Frame	Size L, Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P
Fork	Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1
Wheel Size	Front 29 / Rear 29
Wheels	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 29"
Tyres	Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Shifter	Shimano XT M8100, 12-speed Shimano XT M8100, 12 speed
Rear Derailleur	Shimano XT M8100, long cage
Crank	Shimano XT M8120, 30T, 55 mm chain line, 170 mm length Shimano BB-MT501 BSA
Cassette	Shimano XT M8200, 10-51, 12-speed
Chain	Shimano XT M8100, 12-speed
Front Brake	Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm Max brake rotor size
Rear Brake	Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano XT M8220 4-piston hydraulic disc // Shimano XT M8220 4-piston hydraulic disc Shimano RT86, 6-bolt, 203 mm // Shimano RT86, 6-bolt, 180 mm Max brake rotor size
Handlebar	Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Grips	Trek Line Elite, lock-on
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Seatpost	Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Saddle	Verse Short Comp, steel rails, 145 mm width
Weight	17.79 kg

Please note: Manufacturers can sometimes change the specification of the products from time to time.
