The Big Nine 20 XL Dark Grey/Purple is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.

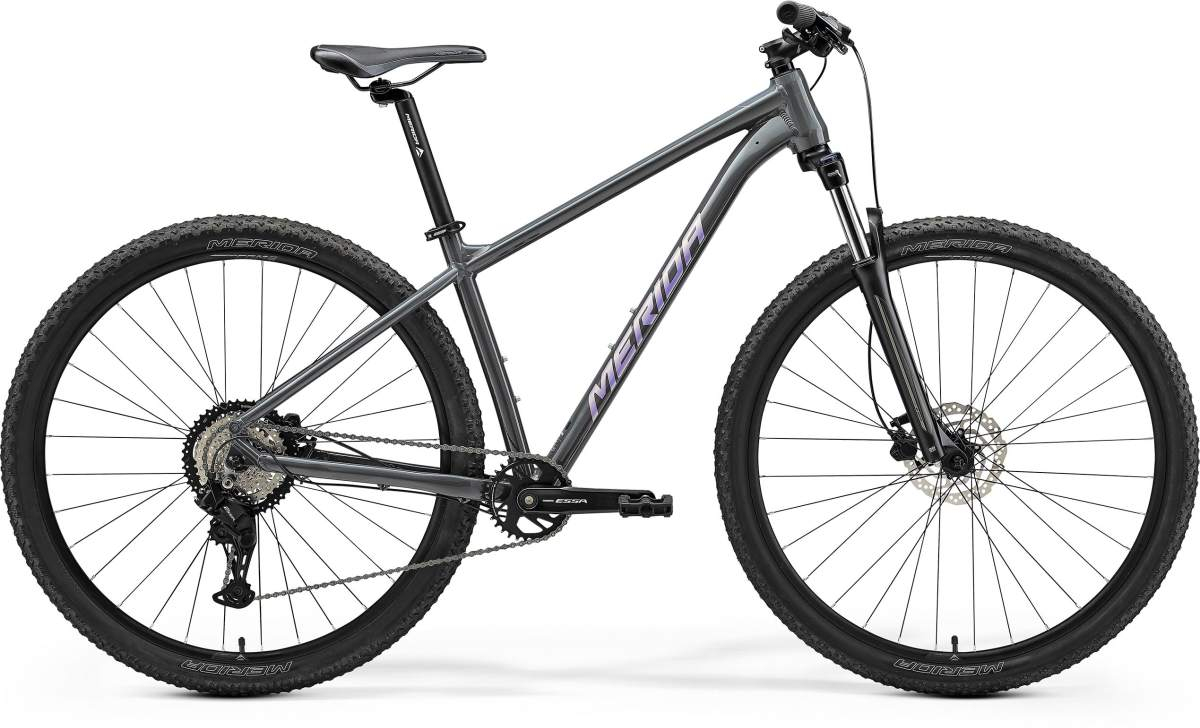

29er hardtail with sophisticated TFS aluminium frame, Shimano 1 x 8 drivetrain, SR Suntour lockout fork, hydraulic disc brakes, Shimano hubs, cassette, BB and chainset.
Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping powerAs much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
| Frame | TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25 |
| Fork | SR Suntour XCT30 HLO; Coil; 100mm travel; lockout; Max tyre size 29 x 2.25 |
| Headset | Merida M2345 |
| Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL) |
| Handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
| Grip | Merida EC |
| Brake Type | Hydraulic disc |
| Brake Lever | Tektro M275 |
| Brake Calipers | Front: Tektro HD-M275; hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Tektro HD-M275; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Tyres | Front: Merida K1080; 29 x 2.2; wire bead Rear: Merida K1080; 29 x 2.2; wire bead |
| Wheel Size | 29 |
| Wheels | Rims: Merida CC; 17mm inner rim width; aluminium Spokes: Black steel Front Hub: Shimano TX505; 100 x 9mm; 32 spoke; Centerlock Rear Hub: Shimano TX505; 135 x 9mm; 32 spoke; Centerlock |
| Speeds | 8 |
| Rear Derailleur | Shimano ESSA RD-U2000-8; GS |
| Shift Levers | Shimano ESSA SL-315-8 |
| Chain | KMC Z8.3 |
| Cassette | Shimano CS-HG400-8; 11-45 teeth; 8 speed |
| Chainset | Shimano ESSA FC-U2001 32 tooth chainset; Aluminium; Crank length - 170mm (S), 175mm (M and up) |
| Pedals | VP VPE-891 |
| Bottom Bracket | Shimano BB-UN101 73-123 |
| Pedals | VP VPE-891 |
| Saddle | Merida Sport comfort |
| Seat Post | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
