TREK 2024 Domane+ AL 5

£2,400.00
Was £3,049.99
30 days free insurance available

Finance available from £45 per month with V12 Finance

61
49
52
54
56
58

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.

You want a high-value e-road bike that looks and rides like a traditional road bike. You're looking for a natural-feeling boost that adds extra capability to training rides and club rides.

A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) with a 250 Wh battery for a range of up to 90 kilometres per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x11 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.

The Domane+ AL's streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.
- This e-road bike looks, rides and feels more like a traditional road bike
- The HyDrive pedal assist system has a hub motor for a more natural ride feel
- Easily change electric assist level with top-mounted controls and keep track of assist and battery levels with the top tube display.
- The stable Endurance Geometry delivers comfort and confidence
- Double your range with a 250 Wh plug-and-play Range Extender battery that sits in your bottle cage

Light, powerful, electric

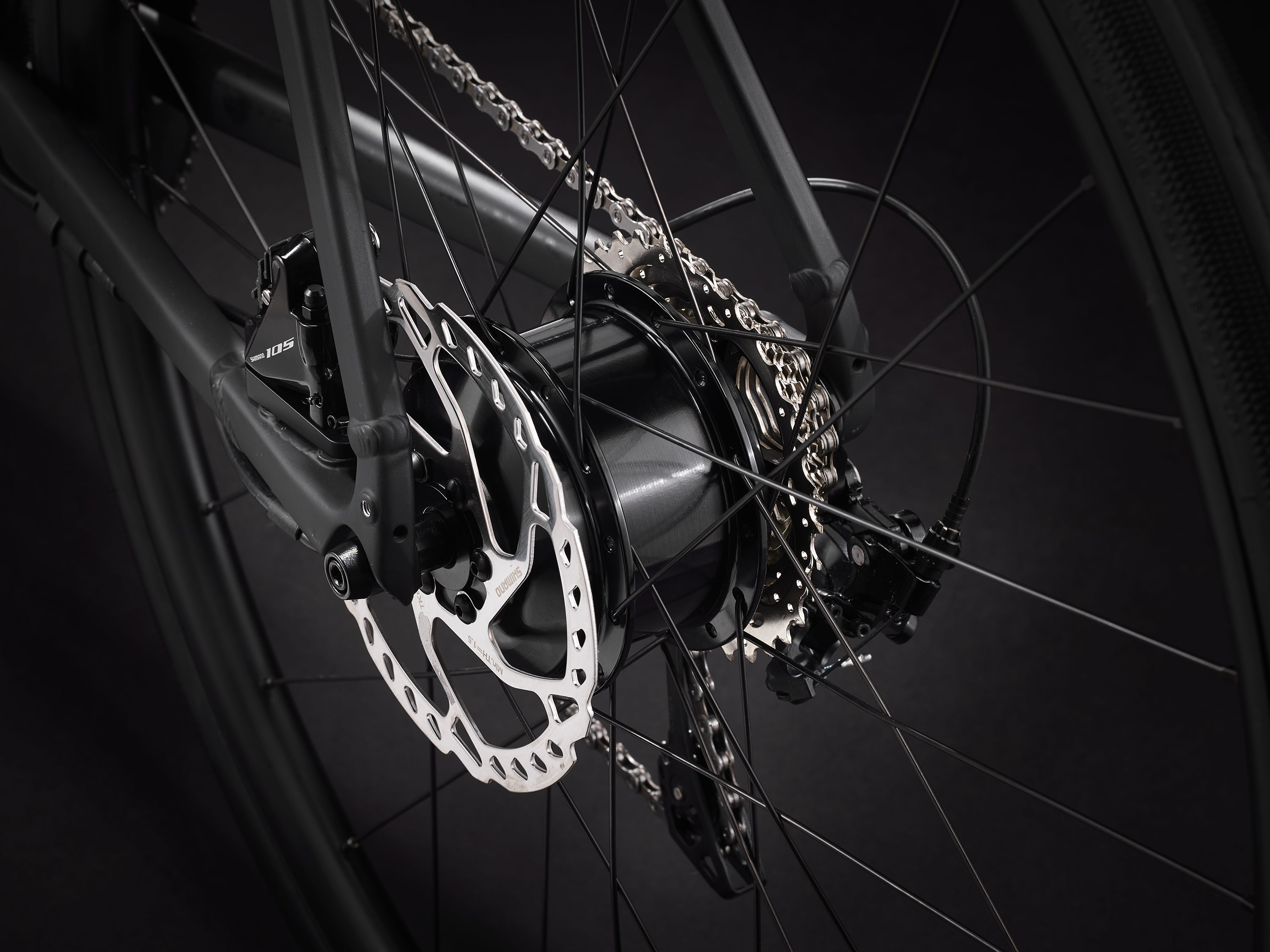

An integrated 250 Wh battery is hidden in the downtube and a powerful yet lightweight rear hub motor gives you that extra boost on the road.

Big tyres, big comfort
Clearance for 38 mm tyres boosts traction for better handling and makes for a comfortable ride on everything from smooth tarmac to light gravel.



Extend your ride
Double your range with an optional 250 Wh Range Extender that can expand your ride to an average of 110 mi/177 km in Eco mode.



Control in the palm of your hand
Easily toggle between the Domane+ AL's three assist modes without taking your hands off the bars using the intuitive top-mounted controls.

Shimano 105
With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget-friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

Don't forget your pedals
This bike doesn't come with pedals because you'll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend flats for versatility or clipless pedals for control and efficiency.

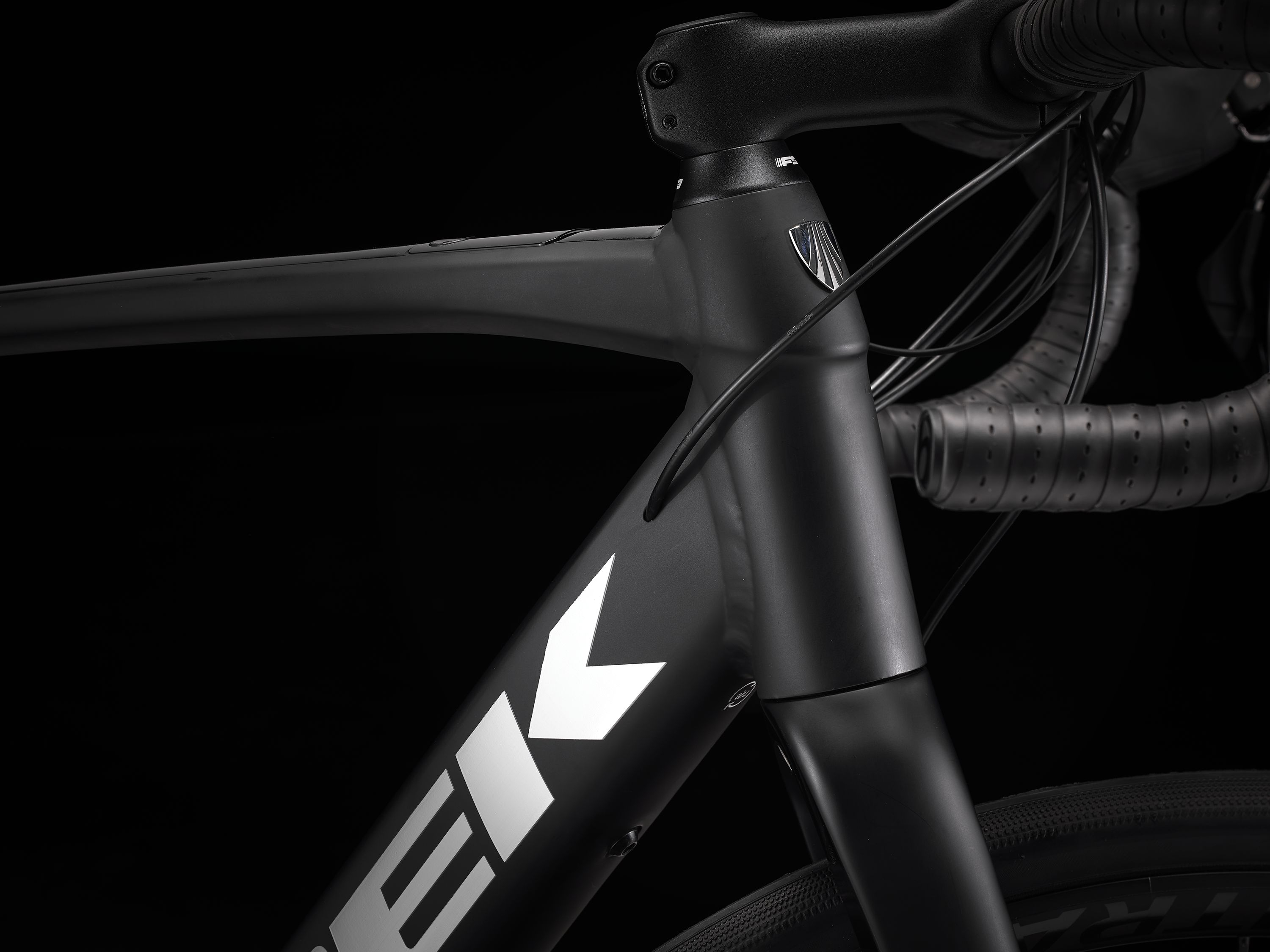

Frame Size 58, UNI, Aluminium, 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
Wheel Size Front 28
Wheel Size Rear 28
Fork Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
Fork Unknown
Gears DERAILLEUR, Shimano, 1 Gears
Tyres BONTRAGER,
Pedals UNKNOWN,
Wheels UNKNOWN, Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle Hyena hub drive motor, 40 Nm, 250 W
Shifters SHIMANO, Shimano 105 R7020, 11-speed // Shimano 105 R7020, 11-speed,
Kickstand UNKNOWN, Unknown
Front Brake SH, Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin Shimano RT66, 6-bolt, 160 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Brake SH, Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin Shimano RT66, 6-bolt, 160 mm Max brake rotor size, Disc brake with hydraulic actuation
Front Derailleur SHIMANO, Shimano 105 R7000, 31 mm clamp
Rear Derailleur ,
Crankset FSA, FSA Vero Pro, 50/34, 175 mm Torque sensor, threaded, 110 mm spindle
Chain SHIMANO, Shimano 105 HG601, 11-speed
Handlebar BONTRAGER, Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Stem BONTRAGER, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Seatpost BONTRAGER
Saddle BONTRAGER, Bontrager Verse Comp, steel rails, 145 mm width
Front Light UNKNOWN
Rear Light UNKNOWN
Battery Capacity 252
Battery Brand UNKNOWN
Battery Model UNKNOWN
Drivetrain Brand Hyena
Sensor Type PEDALFORCE
