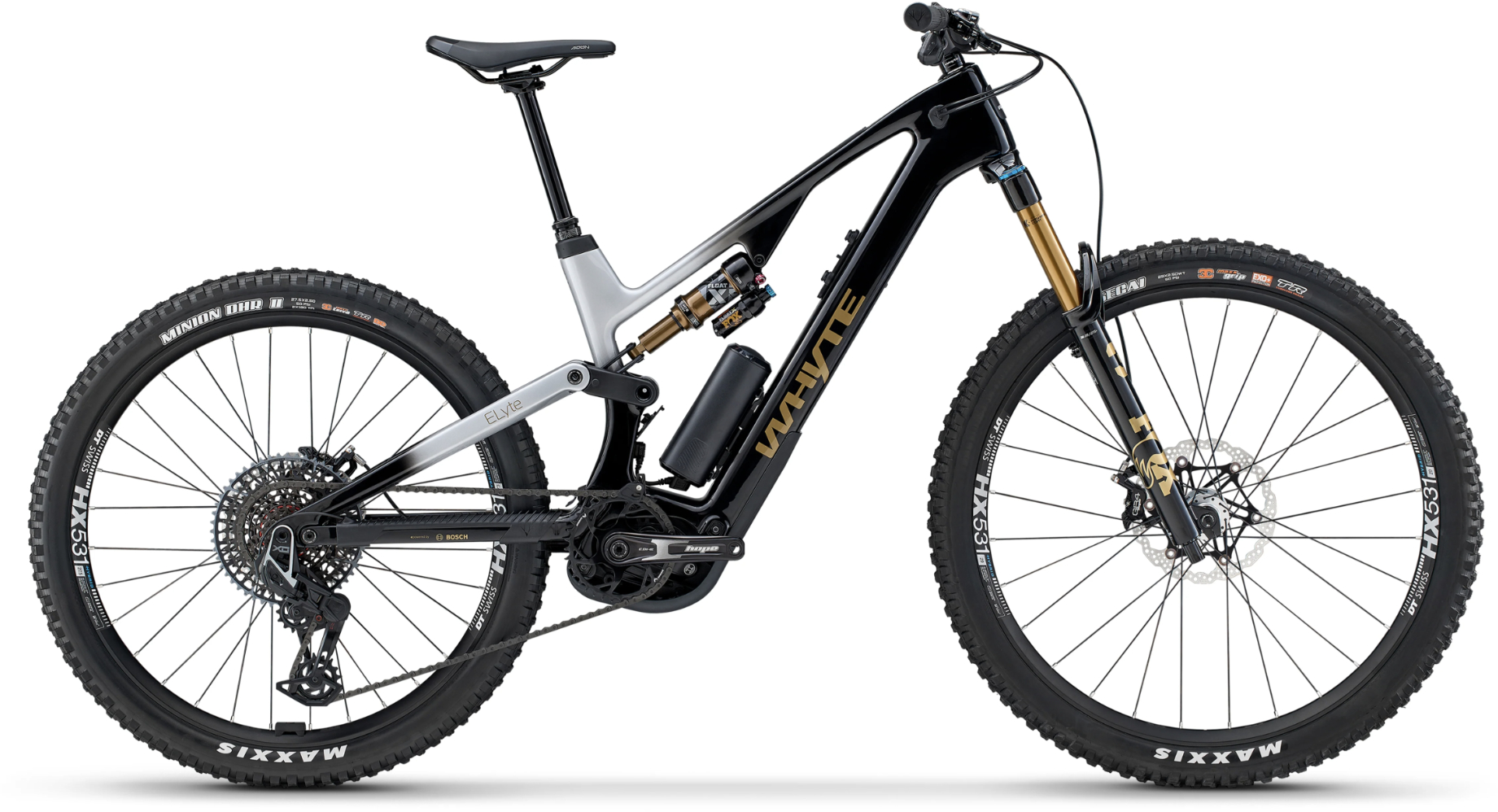

Whyte ELyte Evo Stag Works

Name: Whyte ELyte Evo Stag Works
Brand: Whyte
SKU: WELEVOSW3LV2-1
Price: 9998.99 GBP
Availability: InStock

£9,998.99

Finance available with Novuna Personal Finance

Selected Colour: Stealth black and silver

Select a Size:

Small

Medium

Large

Extra Large

Available from Supplier Warehouse ( 7-10 days )

Check store availability

Part Number:

WELEVOSW3LV2-1

GTIN:

5032489085785

Lightweight, full-power, full-torque “ all of the time.
###############################################################################################################################################################################################################################################################

Specification

Frame	Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Fork	2026 Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 custom tuned damper, tapered steerer, 110m x 15mm Kabolt axle
Rear Shock	Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte
Headset	FSA No. 55R, 1-1/8in upper and 1.5in lower
Rear Hub	Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Front Hub	Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
Spokes	DT Swiss elemental
Rims	DT HX531, 30mm Internal
Tyres	Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear
Shift Levers	SRAM AXS Pod, right, MMX, 12 speed
Front Derailleur	N/A
Rear Derailleur	SRAM XO T-Type AXS, 12 speed, powered off Bosch CX Motor
Cassette	SRAM XS 1295, T-Type, 10-52T, 12 speed
Chain	SRAM XO T-Type, 12 speed
Crankset	Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
Bottom Bracket	N/A
Seatpost	Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
Seat	Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Handlebar	Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide
Stem	Whyte Trail full CNC, 32mm extension, 35mm bar bore
Grips	Whyte Enduro lock-on
Front Brake	Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor
Rear Brake	Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor
Brake Levers	Hope EVO GR4
Pedals	Fibre reinforced composite platform
Ebike Motor	Bosch Performance Line CX (Smart System) Drive Unit with 100Nm maximum torque, 600W of peak power (rising to 750W in October 2025 via a software update) and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+.
Battery	Bosch Compact PowerTube 400Wh, integrated within the downtube of the frame at the lowest point for stability and control. Also comes with the external, removable 250Wh PowerMore range extender to deliver a combined 650Wh of battery capacity.
Battery Charger	x2 4A (230V) chargers (one for bike, one for PowerMore)
Display	Bosch Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.

Please note: Manufacturers can sometimes change the specification of the products from time to time.
