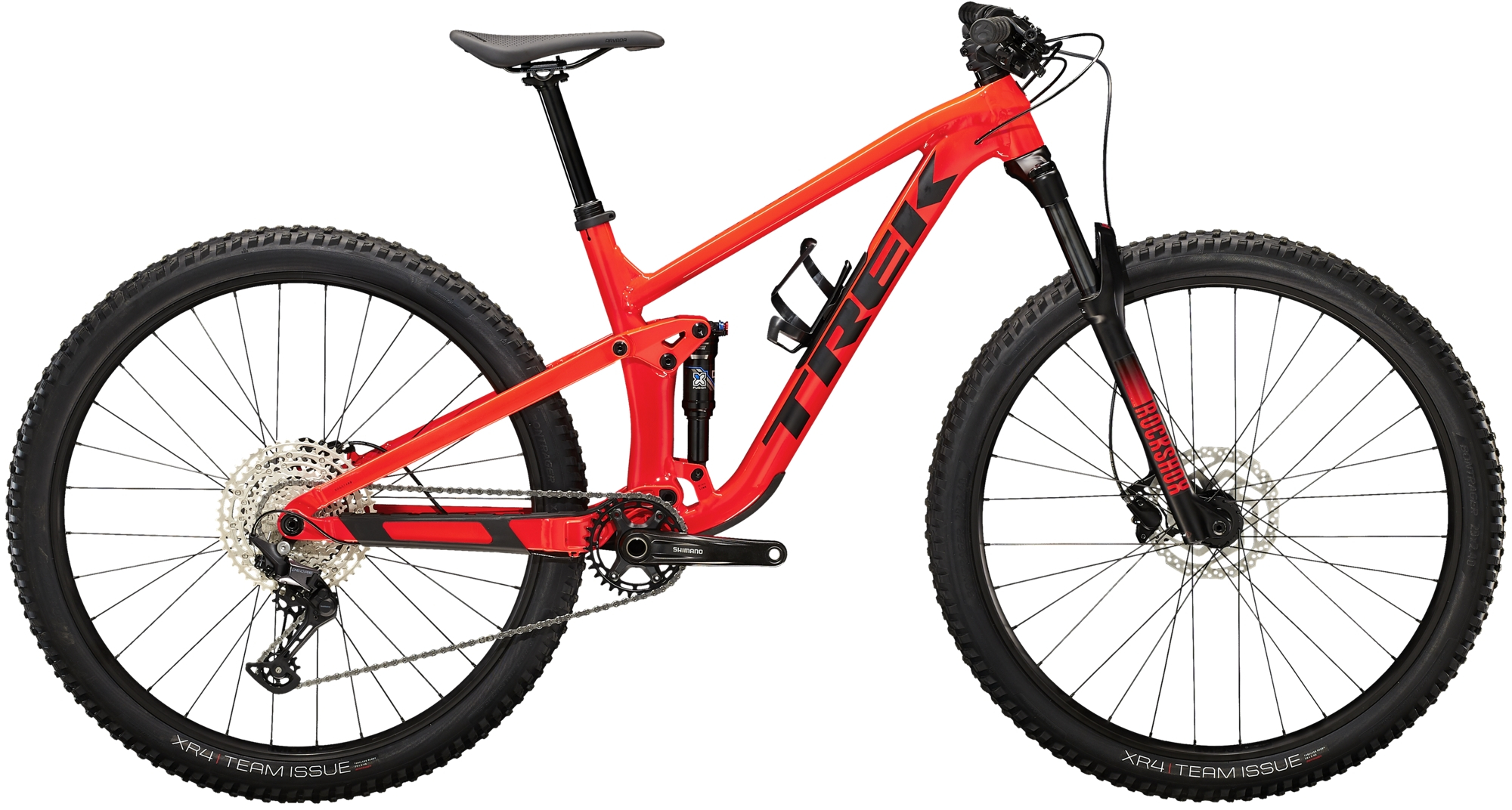

TREK 2022 Top Fuel 5 Gen 3

£1,905.67  £2,699.99
30 days free insurance available
ML
S
M
L
XL
XXL
Out of Stock ( Call for Availability )
Part Number:

5259789

GTIN/UPC:

601842579619

Unleash your spirit for adventure with the 2023 Top Fuel 5 by TREK, a true testament to the brand's commitment to pushing the boundaries of what a full-suspension mountain bike can be. With its superior ability to take on uphill climbs and rugged descents, this bike carves its own unique trail.

Built for riders ready to graduate to a full-suspension bike, the Top Fuel 5 impresses with its sturdy alloy frame. Armed with a perfectly picked mix of parts for optimum performance, this bike breaks no sweat when it's time to hit the trail.

Designed with an eye for detail, the aluminium frame features a handy internal storage compartment. Complete with top-tier components including tubeless-ready rims, a 120 mm RockShox Recon fork for a smoother ride, and hydraulic disc brakes for maximum control and stopping power, this bike is a complete package that doesn't skimp on value.

Key Features:
- Light yet robust aluminium frame.
- RockShox Recon fork offering 120mm of travel.
- Equipped with a 1x12 Shimano Deore drivetrain known for its wide range and reliability.
- Hydraulic disc brakes for ultimate stopping power and control.
- X-Fusion Pro 2 shock for superior rear travel handling.
- Tubeless-ready rims for a more comfortable ride on rough trails.

The nuanced control offered by the Active Braking Pivot system sets this bike apart. This feature allows the suspension to react independently to acceleration and braking forces, giving riders greater control no matter the terrain.

The progressive trail geometry and 120 mm rear travel contribute to a ride that’s both fast and highly responsive. The bike's internal storage compartment lets you carry all your essentials without the need for a backpack, while the guided internal cable routing delivers a quiet, maintenance-friendly ride.

The Shimano Deore drivetrain delivers exemplary performance with a wide gear range for every adventure, ensuring smooth riding and precise shifting to enhance your mountain biking confidence and control.

Whether you're a beginner looking for a reliable first full-suspension bike, or a seasoned rider seeking a trustworthy and cost-effective upgrade, the 2023 Top Fuel 5 by TREK stands as an excellent choice.

Frame Size XL, UNI, Aluminium, Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Wheel Size Front 29
Wheel Size Rear 29
Fork RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Fork Unknown
Gears DERAILLEUR, Shimano, 1 Gears
Tyres BONTRAGER,
Pedals UNKNOWN,
Wheels BONTRAGER, Bontrager alloy hubs, Alex MD35 rims Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
Shifters SHIMANO, Shimano Deore M6100, 12-speed,
Kickstand UNKNOWN, Unknown
Front Brake SH, Shimano MT200 hydraulic disc Shimano RT26, 6-bolt,180 mm // Shimano RT26, 6-bolt,160 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Brake SH, Shimano MT200 hydraulic disc Shimano RT26, 6-bolt,180 mm // Shimano RT26, 6-bolt,160 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Derailleur ,
Crankset SHIMANO, Shimano MT512, 30T ring, 55 mm chain line, 175 mm length Shimano BB-MT501 BSA
Chain SHIMANO, Shimano Deore M6100, 12-speed
Handlebar BONTRAGER, Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Stem BONTRAGER, Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Bartape / Grips BONTRAGER
Seatpost TRANZX
Saddle BONTRAGER, Bontrager Arvada, steel rails, 138 mm width
Front Light UNKNOWN
Rear Light UNKNOWN

Please note: Manufacturers can sometimes change the specification of the products from time to time.
