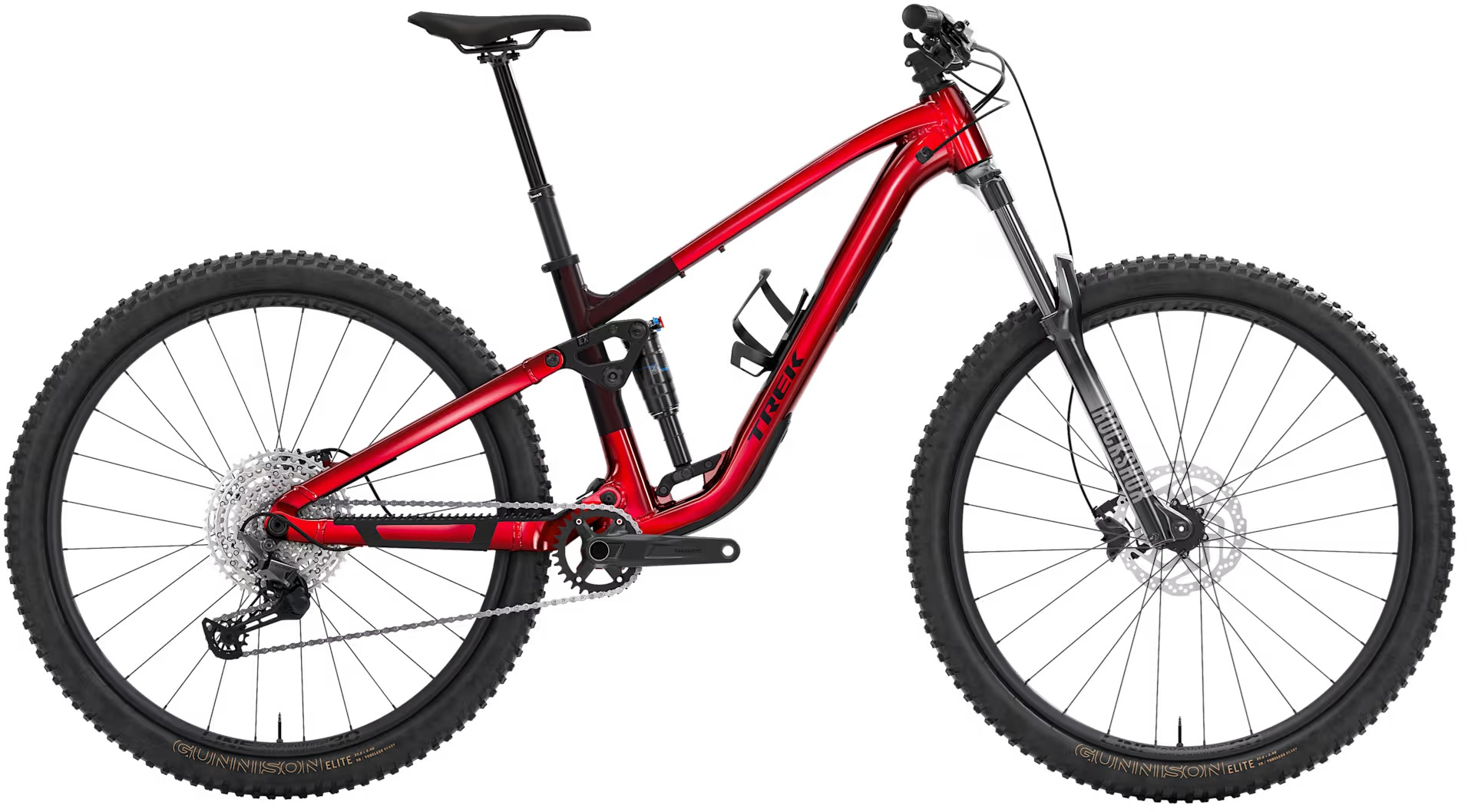

The 2026 Fuel EX 5 Gen 7 XL GLOSS FURY RED/MATTE DARK CARMINE is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.
Adapt, rip, repeat
Only you can define your perfect trail bike - that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models - both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
| Frame | Size XL, Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm Alpha NEXT P |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, l |
| Wheel Size | Front 29 / Rear 29 |
| Wheels | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve Shimano TC500 alloy, CentreLock, 110x15 mm thru axle Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Tyres | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| Shifter | Shimano Deore M6100, 12-speed Shimano Deore M6100, 12 speed |
| Rear Derailleur | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55 mm chain line, 170 mm length Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Front Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper // Shimano hydraulic disc, MT201 lever, MT200 calliper Shimano hydraulic disc, MT201 lever, MT200 caliper // Shimano hydraulic disc, MT201 lever, MT200 caliper Shimano RT10, CenterLock, 180 mm Max brake rotor size |
| Rear Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper // Shimano hydraulic disc, MT201 lever, MT200 calliper Shimano hydraulic disc, MT201 lever, MT200 caliper // Shimano hydraulic disc, MT201 lever, MT200 caliper Shimano RT10, CenterLock, 180 mm Max brake rotor size |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Weight | 17.02 kg |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
