The Fuel EX 9.9 XX AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life. It combines a cream-of-the-crop carbon frame with top-tier components, from the carbon fibre wheels all the way up to the 150 mm Kashima-coated FOX Factory fork and featherweight, fully wireless SRAM XX transmission. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms and rocketing back to the top to conquer it all once again.
You have refined taste in mountain bikes, and don't like to settle. You want a bike built to tackle the whole mountain and rule it all with the finest technology available, from its light and stiff carbon frame and wheels that track through the hairiest lines, to the FOX Factory fork and SRAM's fully wireless top-tier XX transmission. You have refined taste in mountain bikes, and don't like to settle. You want a bike built to tackle the whole mountain and rule it all with the finest technolo
A featherweight OCLV Mountain Carbon frame built to handle the rough and rowdy, a pair of finely laced carbon wheels that track through technical terrain with ease and SRAM's top-tier XX AXS direct-mount, fully wireless electronic transmission. Plus, you get the silky smooth travel of a 150 mm FOX Factory 36 Fork with Float EVOL air spring and GRIP2 damper, 140 mm of FOX Factory Float X rear suspension and a RockShox Reverb AXS dropper post, all topped off with adjustable geometry for fine-tuning your ride to you and internal frame storage that lets you keep your set-up tidy without leaving behind trail essentials. A featherweig
The Fuel EX 9.9 is a bike built to satisfy those with the finest taste. It pairs together an all- mountain trail capable carbon frame with the finest components you'll find on a modern mountain bike, from its carbon hoops to featherweight wireless SRAM XX AXS shifting. It's all wrapped up with adjustable geometry, so you can fine tune your ride to always feel how you want it. Fuel EX 9.9 is a bike built to satisfy those
- The Fuel EX Gen 6 gives you 140/150 mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage Fuel EX Gen 6 gives you 140/150mm of travel with extra adjustability features and more stable handling, plus a more robust frame w
- We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5? wheels, S frames get to choose between 27.5? or 29?, and sizes M and up get 29? wheels We expanded our size ran
- The new SRAM T-Type transmission delivers next-level performance with precise shifts under load and unmatched durability with proven wireless technology. The new SRAM T-Type transmission delivers next level performance with precise shifts under load
- In-frame storage makes it easy to bring along all your essentials, while keeping your set-up streamlined and sleek In-frame storage makes it easy to bring along all of your essentials, while keeping your setup streamlined and sleek
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different

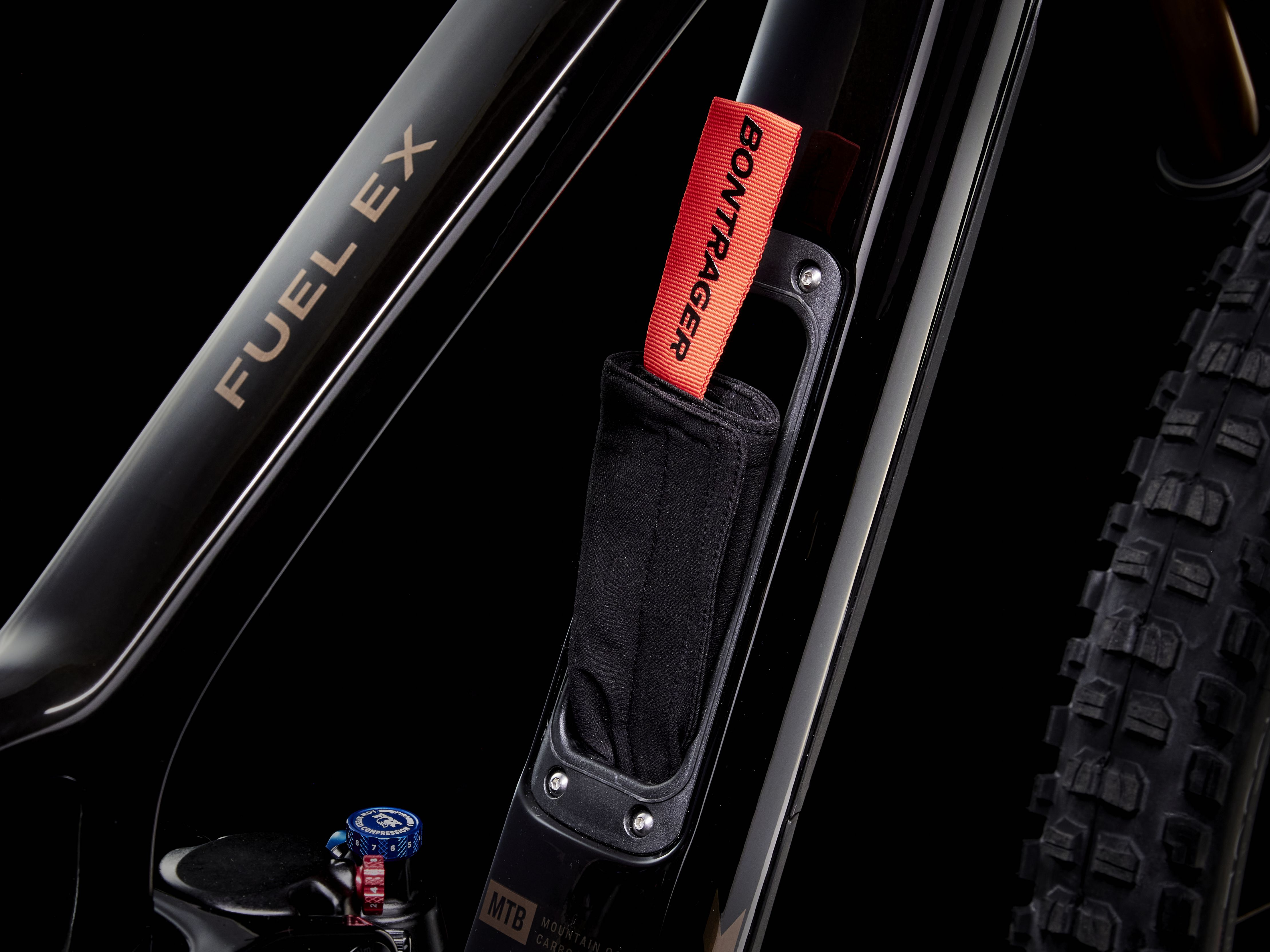

Internal Storage
Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

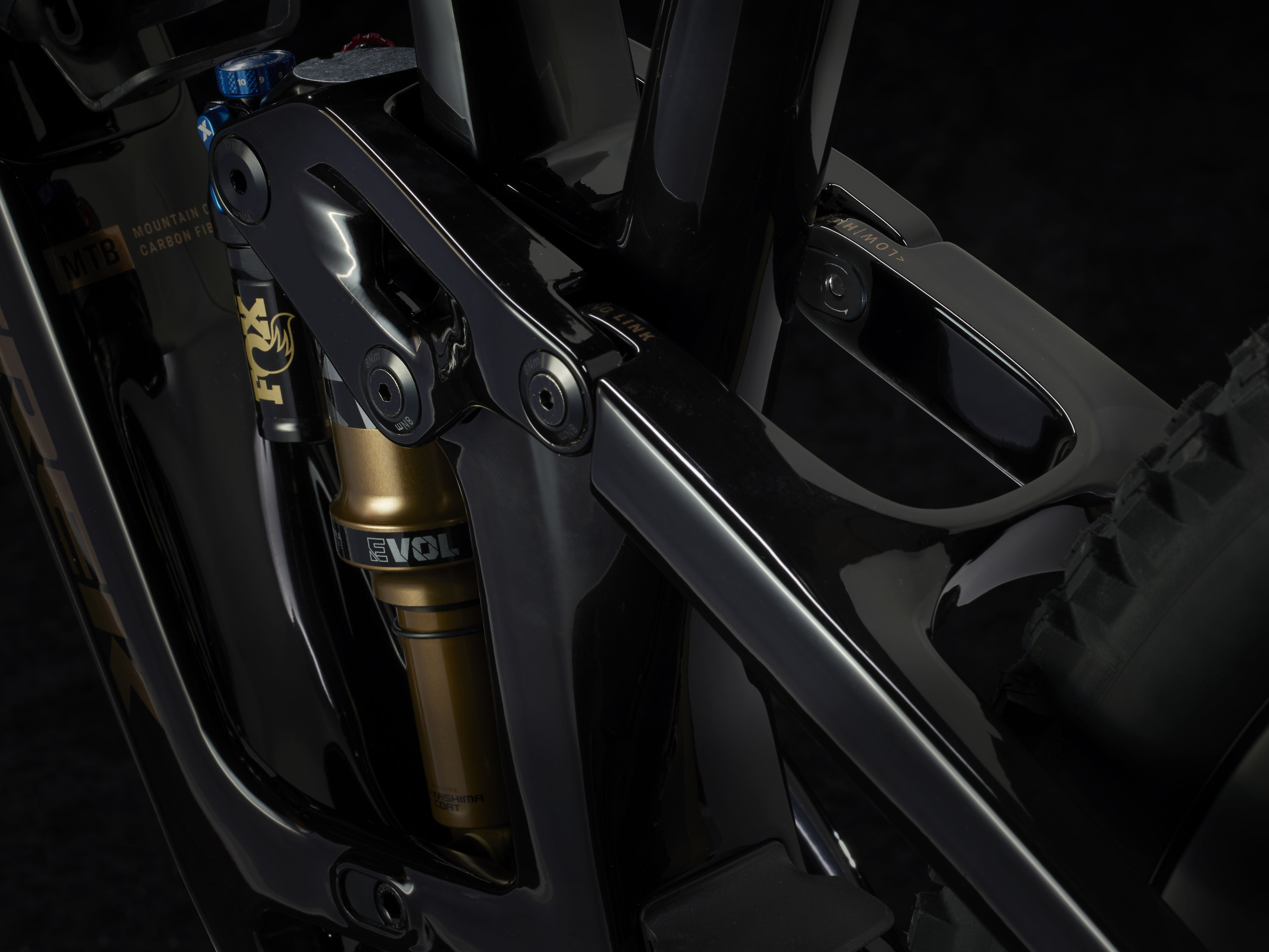

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Slack or steep, the choice is yours
Install angle-adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking - all without impacting your bottom bracket height.
Adjust the sus for full send
Adjust the leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don't want to bottom-out, or when you want to run a coil shock.

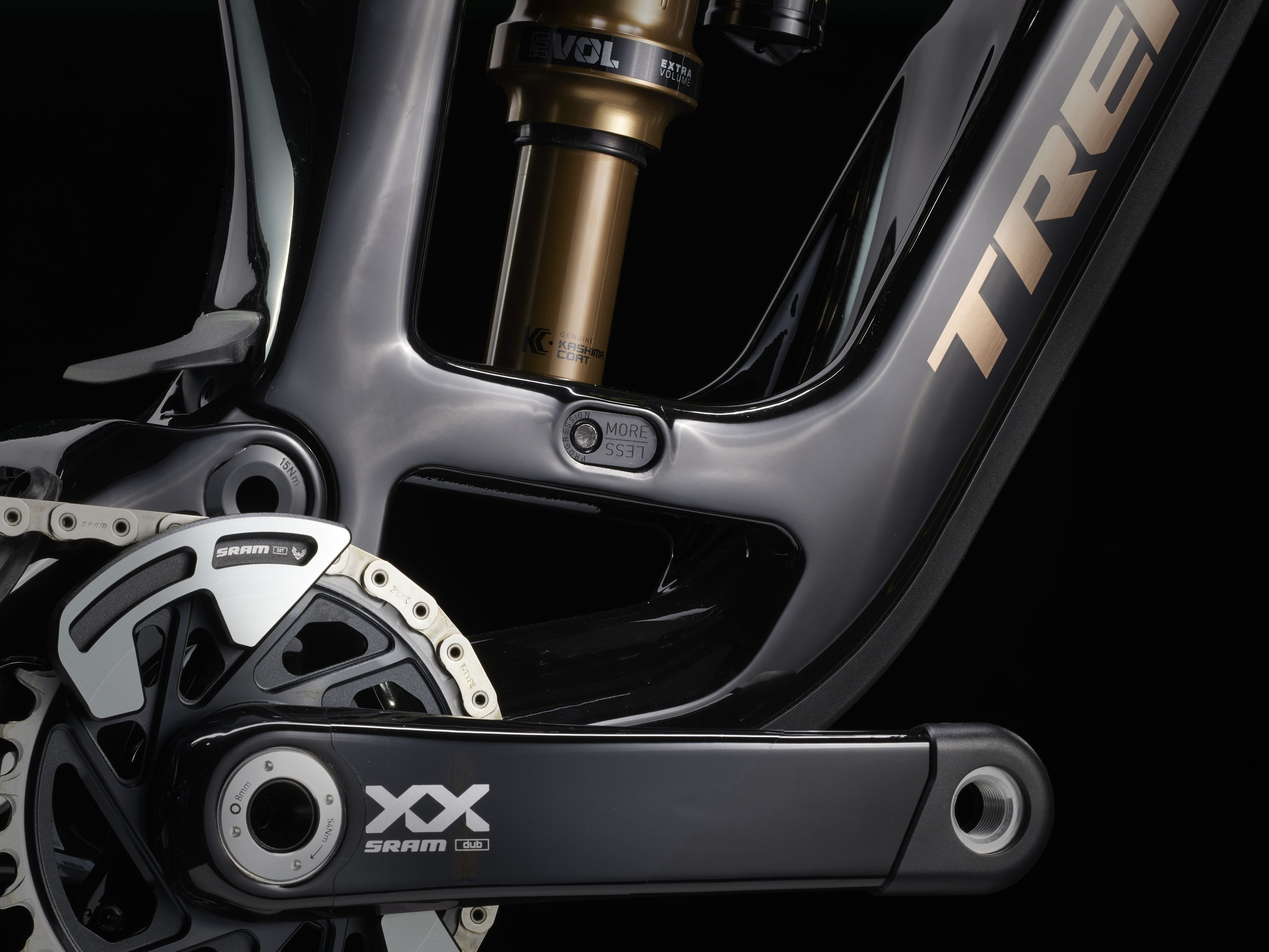

Transition to transmission
The SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner-looking, it's also more precise under load and easier to set up.
Size-specific stays
Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.
| Frame | Size L, UNI, Carbon, OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Wheel Size | Front 29 |
| Wheel Size | Rear 29 |
| Weight | 14480 g |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 150 mm travel |
| Fork | Unknown |
| Gears | DERAILLEUR, Sram, 1 Gears |
| Tyres | BONTRAGER, |
| Pedals | UNKNOWN, |
| Wheels | BONTRAGER, Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"" Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle, 29"" |
| Shifters | SRAM, SRAM AXS POD Ultimate, paired with dropper // SRAM AXS POD Ultimate, paired with dropper, |
| Kickstand | UNKNOWN, Unknown |
| Front Brake | SH, SRAM Code Ultimate 4-piston hydraulic disc // SRAM Code Ultimate 4-piston hydraulic disc SRAM HS2, 6-bolt, 180mm // SRAM 6-bolt, 200 mm Max brake rotor size, Disc brake with hydraulic actuation |
| Rear Brake | SH, SRAM Code Ultimate 4-piston hydraulic disc // SRAM Code Ultimate 4-piston hydraulic disc SRAM HS2, 6-bolt, 180mm // SRAM 6-bolt, 200 mm Max brake rotor size, Disc brake with hydraulic actuation |
| Rear Derailleur | , |
| Crankset | SRAM, SRAM XX Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length SRAM DUB MTB Wide, 73 m, BSA threaded |
| Chain | SRAM, SRAM XX Eagle, T-Type, 12-speed |
| Headset | UNBRANDED, Integrated cartridge bearing, 1-1/8"" top, 1.5"" bottom, angle adjust cup compatible |
| Handlebar | BONTRAGER, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length |
| Bartape / Grips | BONTRAGER |
| Seatpost | ROCKSHOX |
| Saddle | BONTRAGER, Bontrager Arvada, austenite rails, 138 mm width |
| Front Light | UNKNOWN |
| Rear Light | UNKNOWN |
