TREK 2024 Rail 7 Gen 3

£3,500.76
Was £5,499.99
30 days free insurance available

Finance available from £65.63 per month with V12 Finance

S
M
L
XL

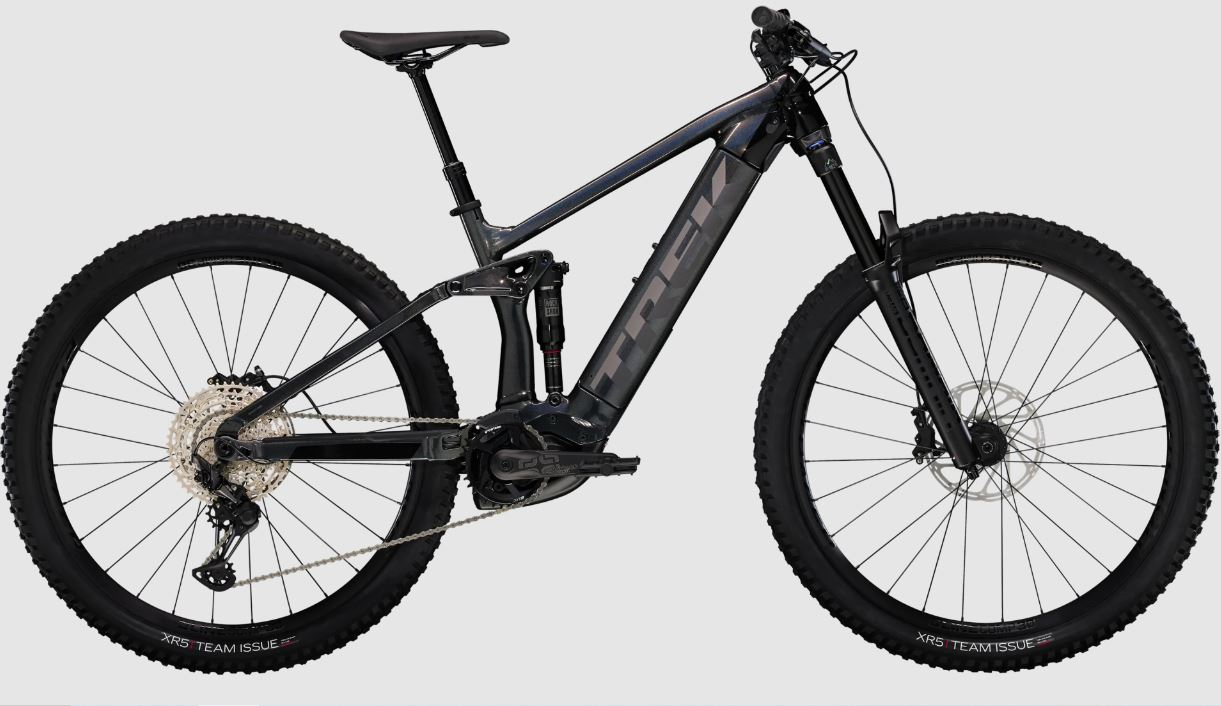

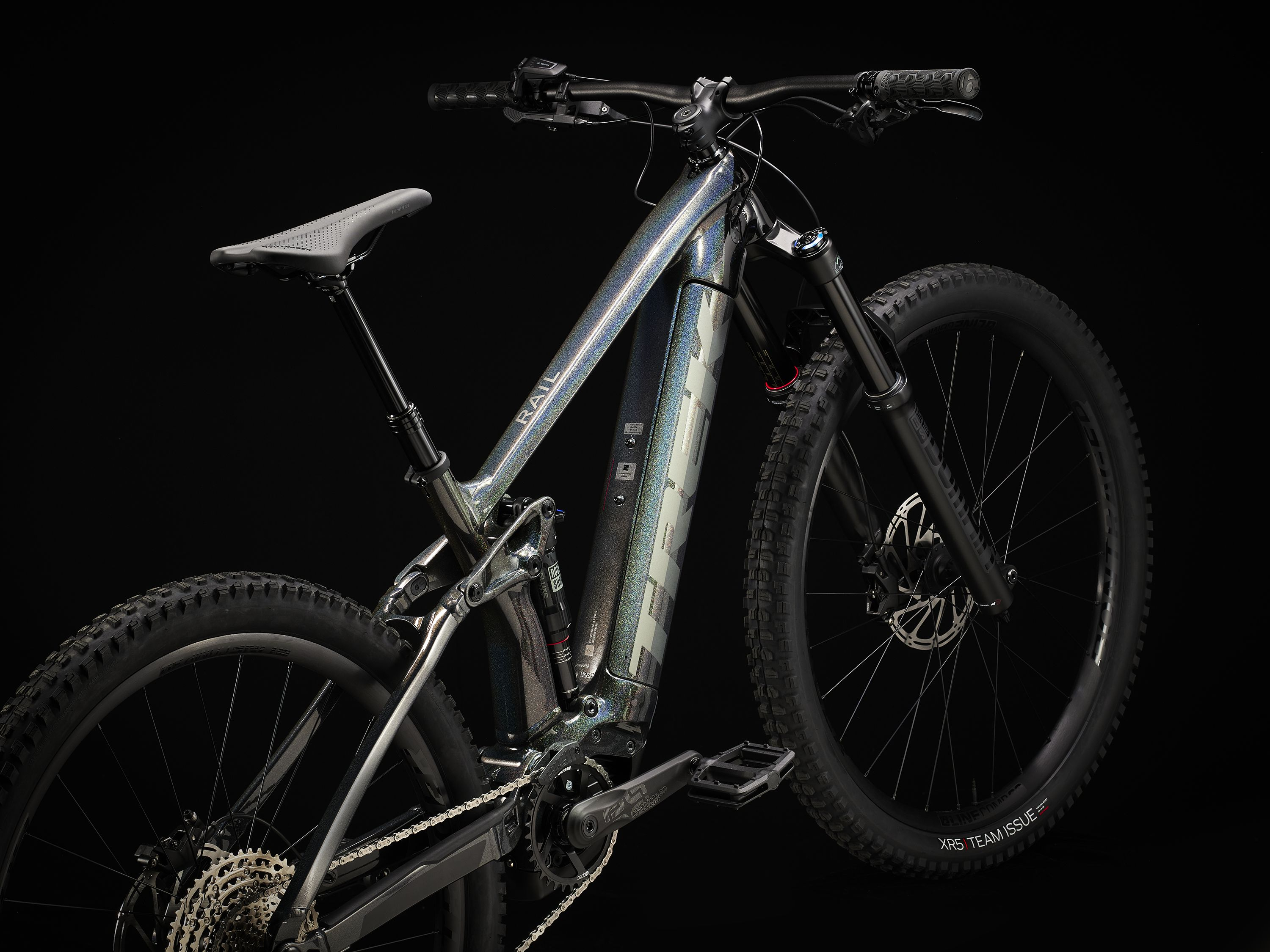

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle.

You're looking for a trail-specific e-MTB that's designed to tackle the same tough terrain as regular trail bikes. You already know just how amazing e-MTBs are on the mountain, and want to invest in better components.

A burly alloy frame with 150 mm of rear travel and a 625 Wh Removable Integrated Battery, a 160 mm RockShox Domain fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A smooth-shifting 1x12 Shimano SLX/XT drivetrain, dropper post, powerful Shimano 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.

The Rail 7 features loads of upgraded parts, including the drivetrain, fork and wheels. Its long-range battery gives you all the power you want for packing in laps and miles of smiles.
- The Alloy Rail Gen 3 features Bosch's smart system with an LED remote that connects to the Bosch eBike Flow app for over-the-air system updates, customised motor tuning and more
- Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
- The Rail keeps your cockpit tidy by skipping a display, but smart system makes it easy to add one
- The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain

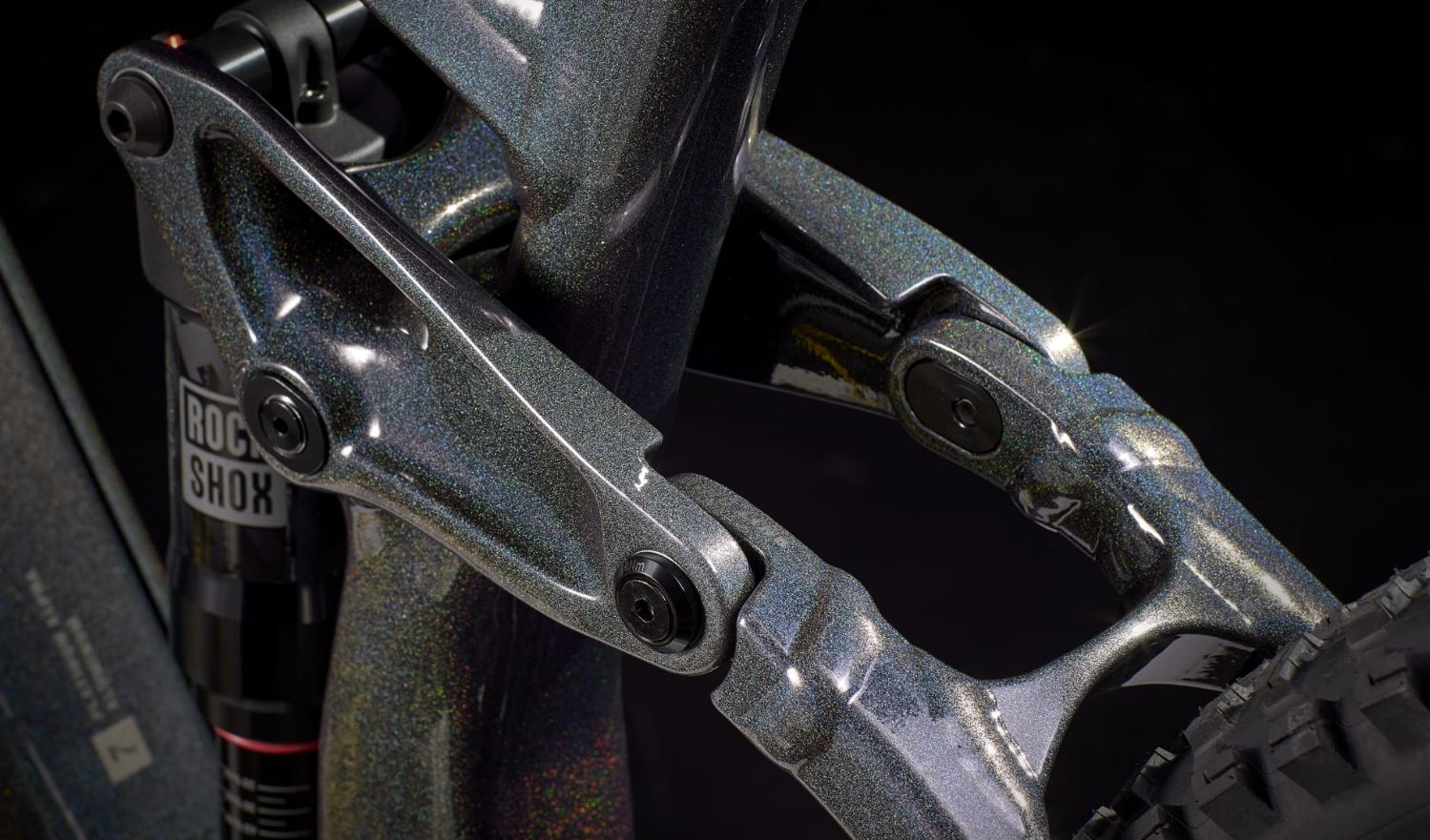

- Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)

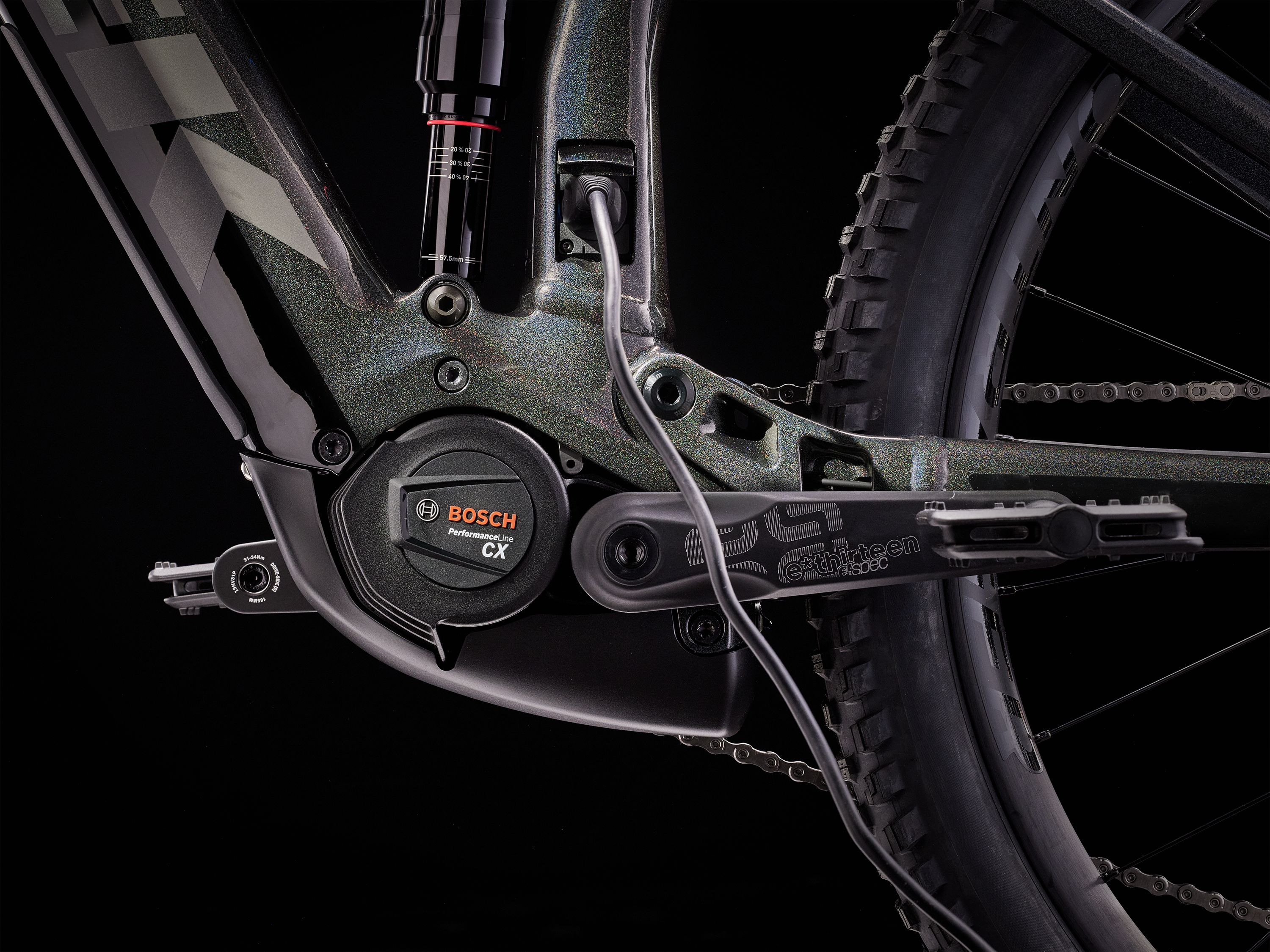

Bosch Performance Line CX motor
The Bosch Performance Line CX sets the standard for eMTB performance with up to 85 Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

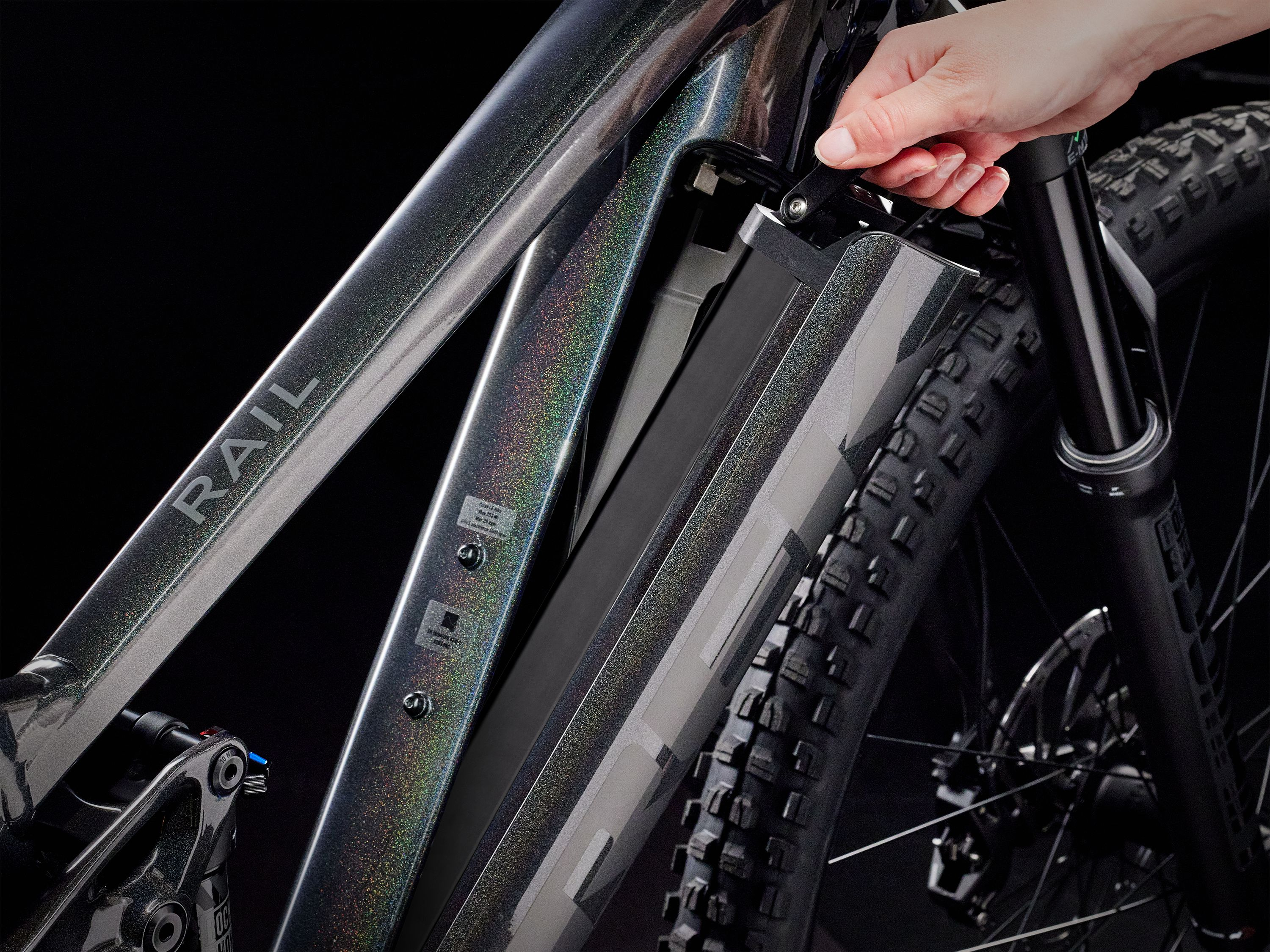

Removable Integrated Battery
RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It's the most convenient way to remove your battery for transport, security or just easier charging.



Bosch Performance Line CX motor
The Bosch Performance Line CX sets the standard for eMTB performance with up to 85 Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

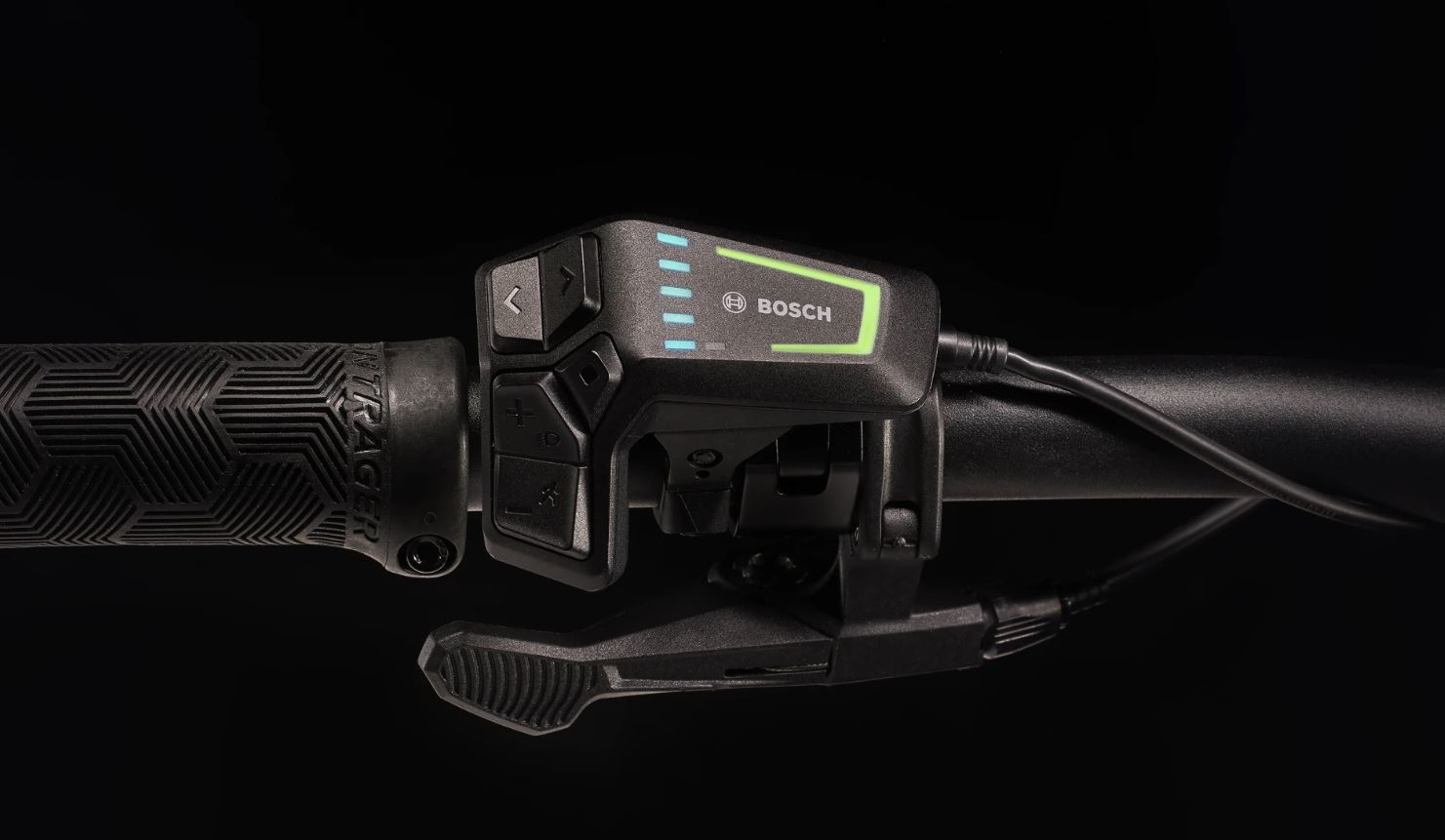

Bosch LED Remote
The Bosch smart system LED remote lets you easily change assist modes, activate walk mode or turn on optional lights. The bright LEDs are easy to see in any light, and show you your battery level and assist mode at a glance.



Bosch Smart System
The Bosch smart system gives you an eMTB that's more connected than ever. The LED remote connects with Bosch eBike Flow app so you can get ride stats, adjust settings and perform system updates. Plus, Bluetooth connectivity makes it easy to add a display if you want to make it easier to see your ride data.

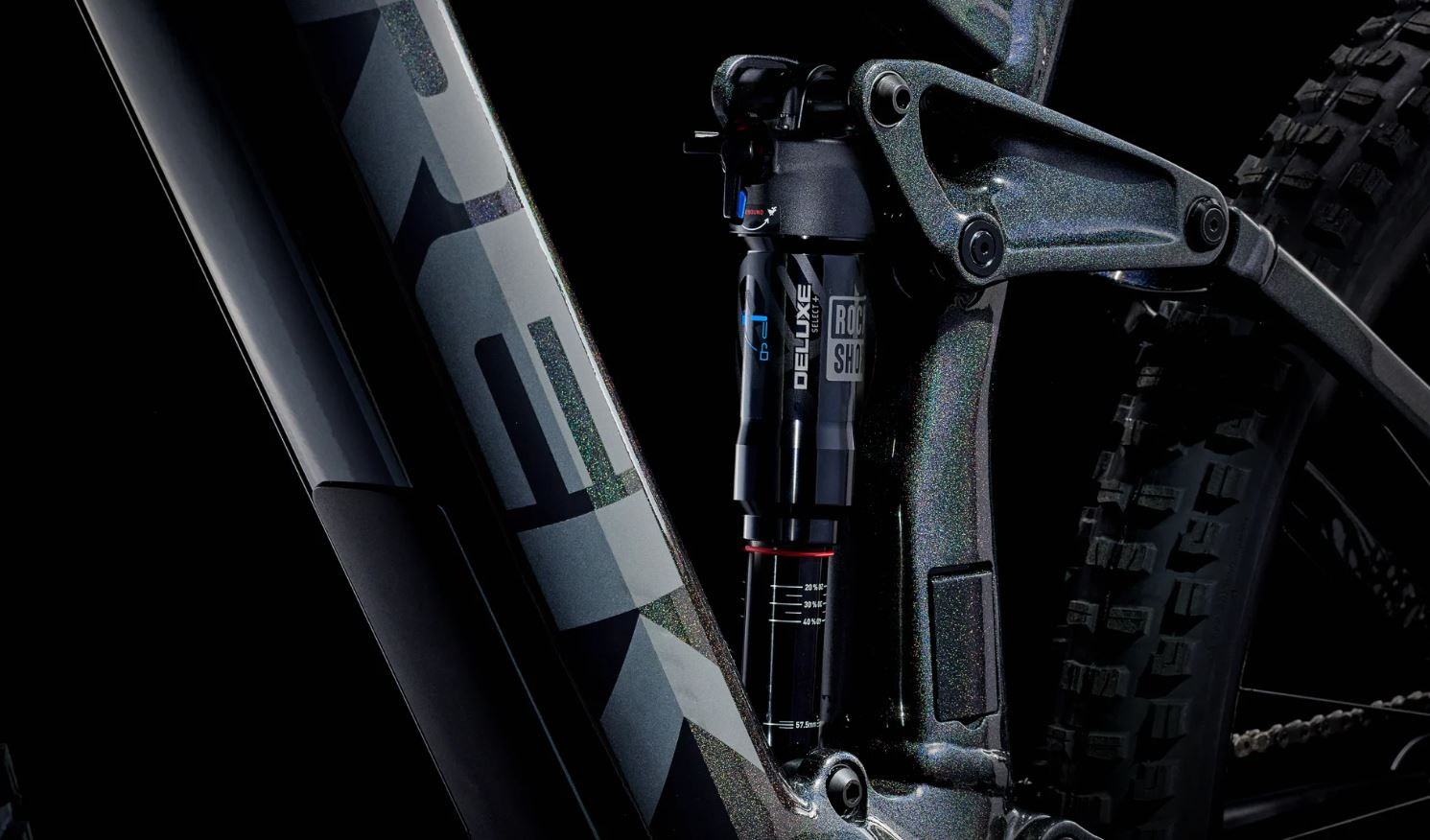

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Frame Size XL, UNI, Aluminium, Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Wheel Size Front 29
Wheel Size Rear 29
Fork RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Fork Unknown
Gears DERAILLEUR, Shimano, 1 Gears
Tyres BONTRAGER,
Pedals UNBRANDED,
Wheels BONTRAGER, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29""

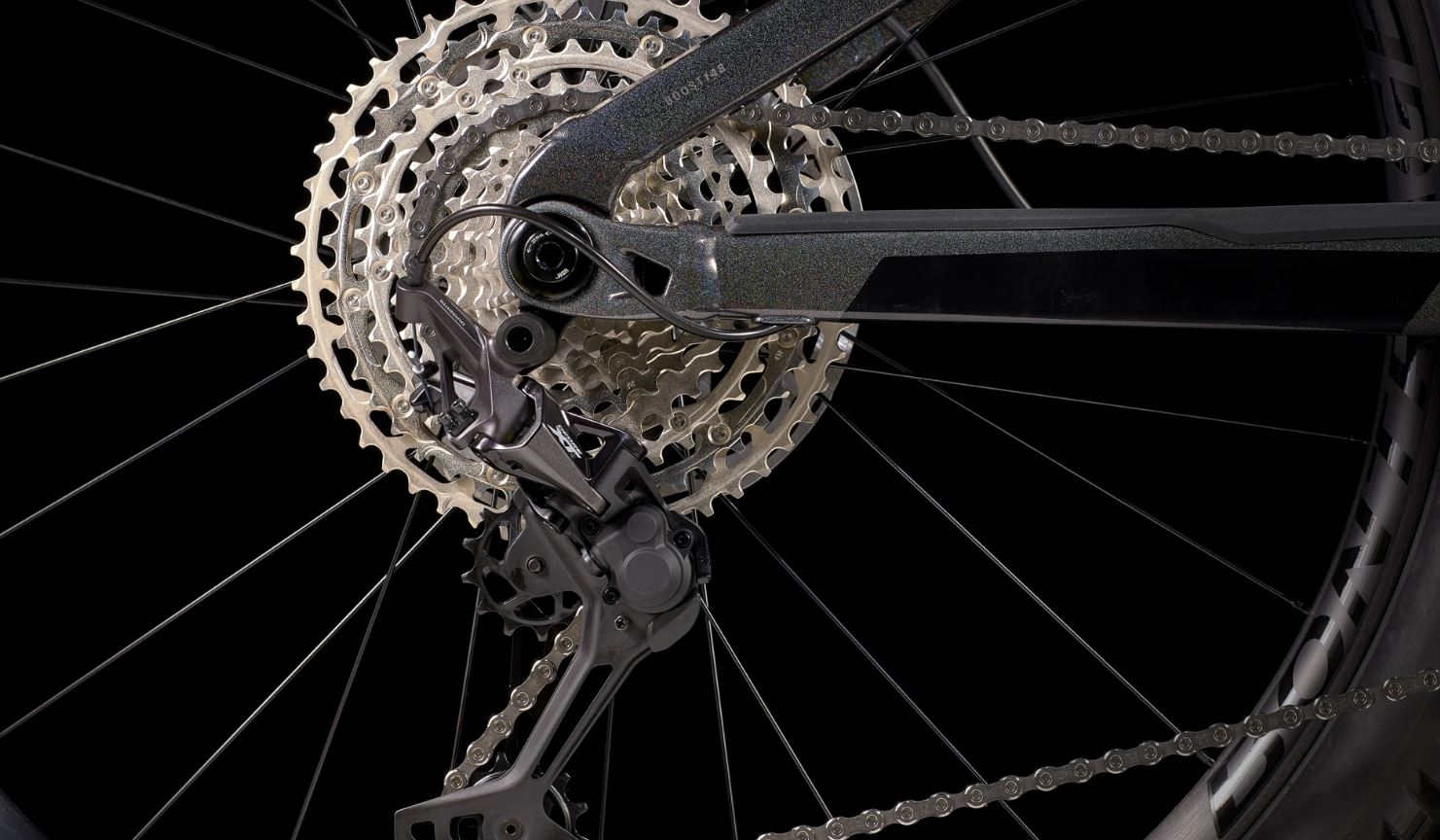

Shifters SHIMANO, Shimano SLX M7100, 12-speed,
Kickstand UNKNOWN, Unknown
Front Brake SH, SRAM Code R 4-piston hydraulic disc SRAM CentreLine, 6-bolt, round-edge, 200 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Brake SH, SRAM Code R 4-piston hydraulic disc SRAM CentreLine, 6-bolt, round-edge, 200 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Derailleur ,
Crankset E_THIRTEEN, E*thirteen E*spec Plus, 165 mm length
Chain SHIMANO, Shimano Deore M6100, 12-speed
Handlebar BONTRAGER, Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Stem BONTRAGER, Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Bartape / Grips BONTRAGER
Seatpost TRANZX
Seatpost Clamp UNBRANDED
Saddle BONTRAGER, Bontrager Arvada, steel rails, 138 mm width
Front Light UNKNOWN
Rear Light UNKNOWN
Battery Capacity 625
Battery Brand BOSCH
Battery Model BOSCH
Drivetrain Brand Bosch
Sensor Type PEDALFORCE

Please note: Manufacturers can sometimes change the specification of the products from time to time.
