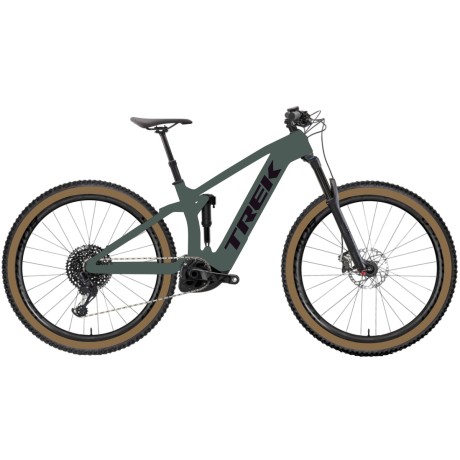

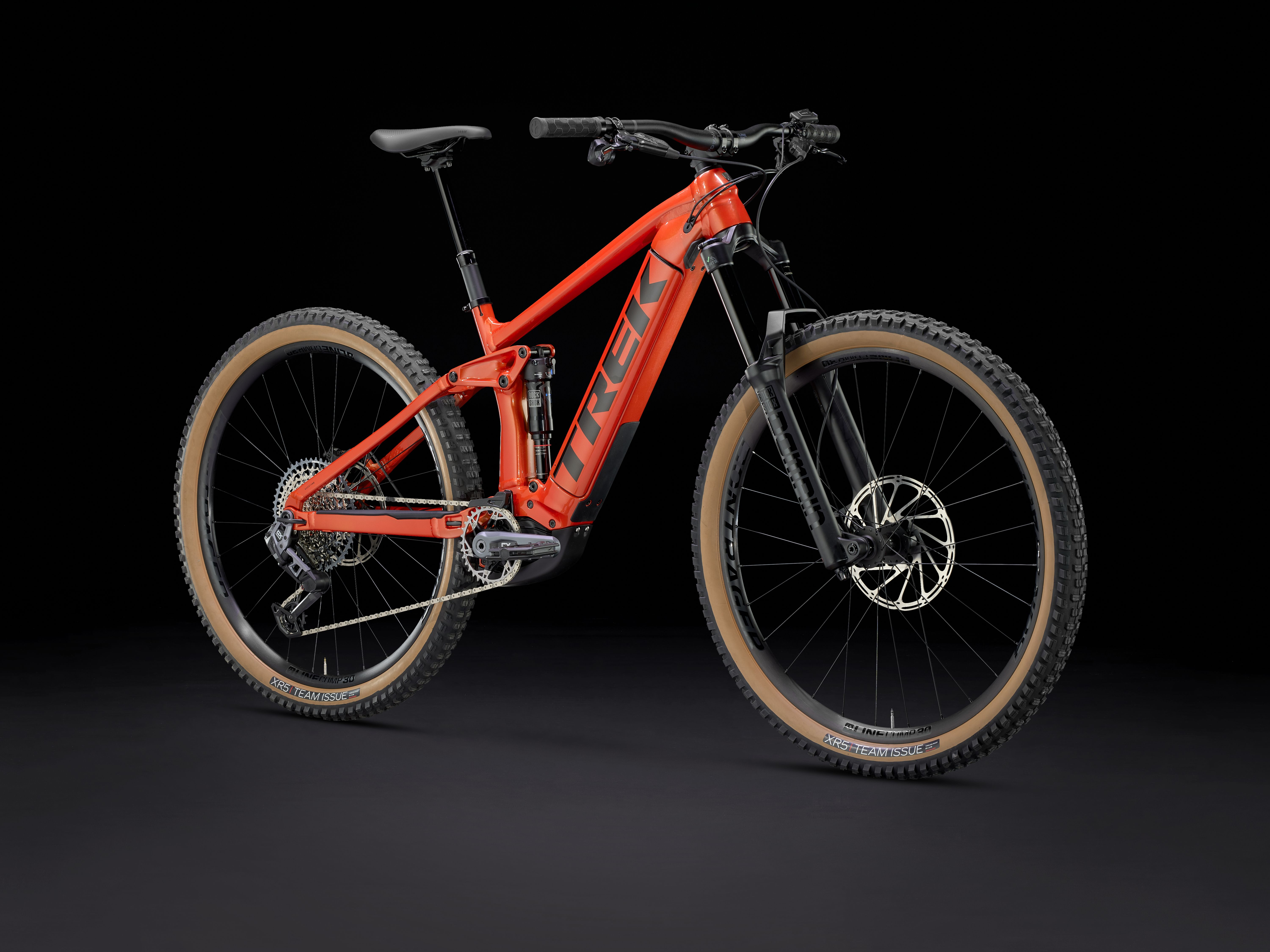

TREK 2024 Rail 8 GX AXS T-Type Gen 3

Name: TREK 2024 Rail 8 GX AXS T-Type Gen 3
Brand: TREK
SKU: 5299742
Price: 4350.00 GBP
Availability: OutOfStock

£4,350.00

Was £6,999.99

Finance available from £81.56 per month with V12 Finance

Select a Colour:

Select a Size:

The Rail 8 is our top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs, and the powerful Bosch drive system will get you back up the mountain faster than you ever thought possible. It comes decked out with a wireless SRAM AXS drivetrain for reliable shifting that stays crisp under load.

You're after a do-anything long-travel e-MTB that can handle it all. You want serious power for steep punches or long fire roads, and the benefit of upgraded suspension on the downs. Plus, SRAM's latest wireless transmission for clean shifts and durability that you can count on.

A burly alloy frame with a 625 Wh Removable Integrated Battery, 160 mm RockShox Domane RC fork with beefy 38 mm stanchions, DebonAir spring and Motion Control damper, a 150 mm RockShox Deluxe Select+ shock, Bosch's smart system Performance Line CX for support up to 20 mph, a Bluetooth® LED remote for connectivity and activity tracking through the eBike Flow app. A wireless SRAM GX Eagle AXS transmission, and tubeless-ready Bontrager Line Comp 30 29er wheels.

This Rail features upgrades in all the right places - suspension, drivetrain, dropper and more. If you're looking for an alloy electric mountain bike that's spec'd to take on anything, the Rail 8 is the ride for you.
- The Rail Gen 3 is built for big adventures, with Bosch's smart system that packs in all the power you need, and a Bluetooth-connected LED remote that's sleek and intuitive
- Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
- The Rail keeps your cockpit tidy by skipping a display, but smart system makes it easy to add one
- The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
- Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)

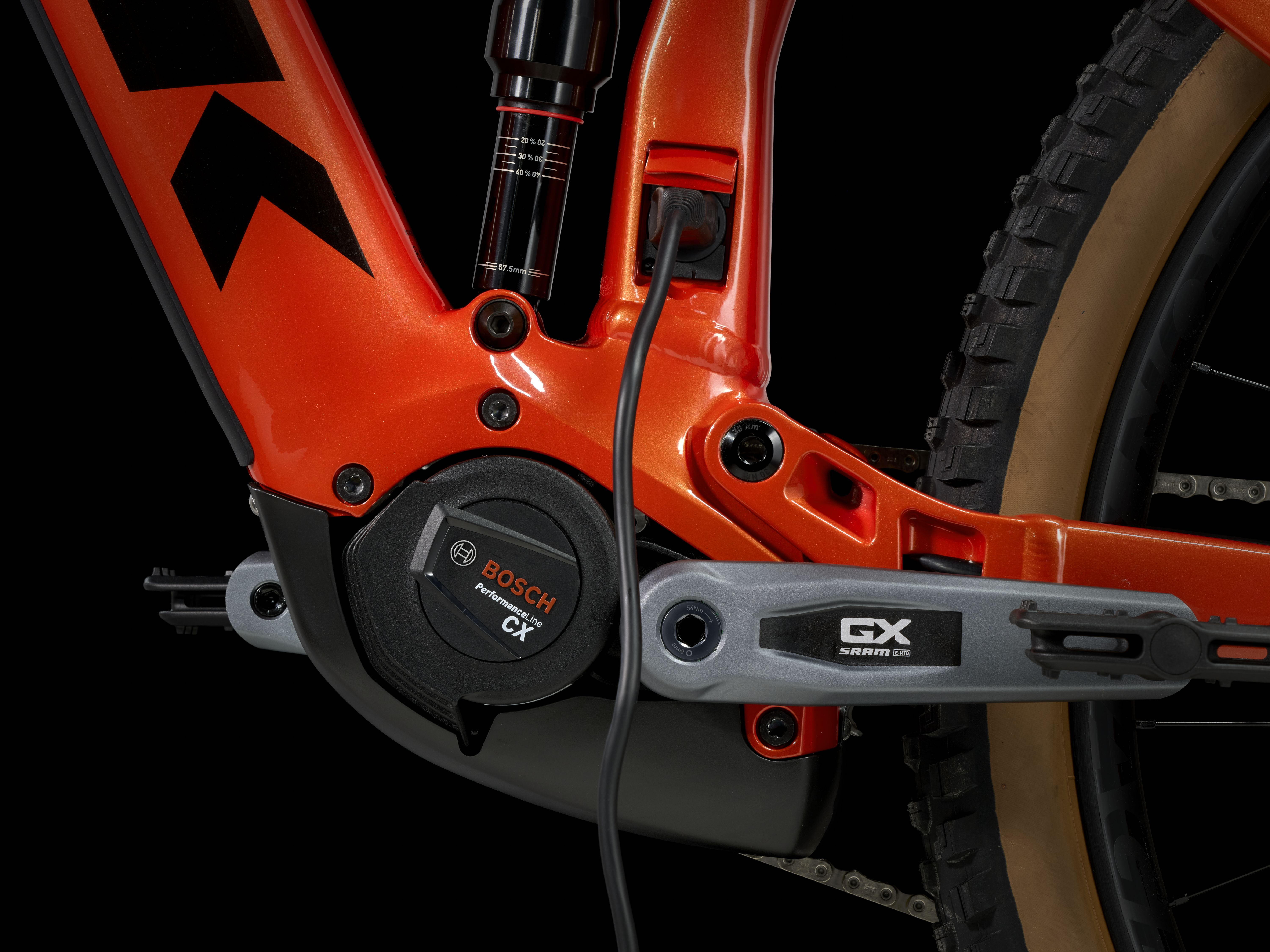

Bosch Performance Line CX motor
The Bosch Performance Line CX sets the standard for eMTB performance with up to 85 Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

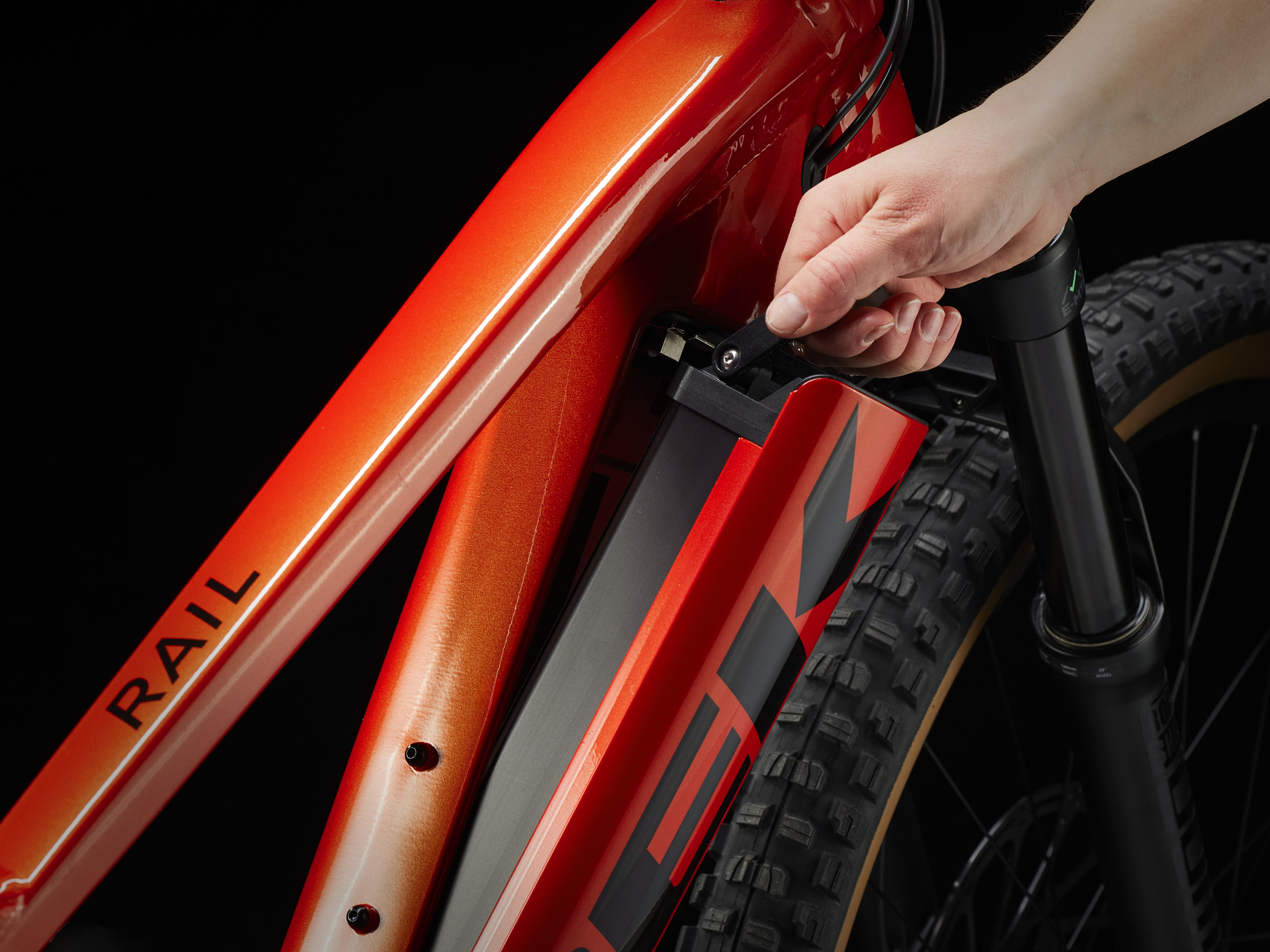

Removable Integrated Battery
RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It's the most convenient way to remove your battery for transport, security or just easier charging.

Bosch Performance Line CX motor
The Bosch Performance Line CX sets the standard for eMTB performance with up to 85 Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

Bosch LED Remote
The Bosch smart system LED remote lets you easily change assist modes, activate walk mode or turn on optional lights. The bright LEDs are easy to see in any light, and show you your battery level and assist mode at a glance.

Bosch Smart System
The Bosch smart system gives you an eMTB that's more connected than ever. The LED remote connects with Bosch eBike Flow app so you can get ride stats, adjust settings and perform system updates. Plus, Bluetooth connectivity makes it easy to add a display if you want to make it easier to see your ride data.

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Specification

Frame	Size M, UNI, Aluminium, Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Wheel Size	Front 29
Wheel Size	Rear 29
Fork	RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44Â mm offset, oversized crown for eMTB, Boost110, 15Â mm Maxle Stealth, 160Â mm travel
Fork	Unknown
Gears	DERAILLEUR, Sram, 1 Gears
Tyres	BONTRAGER,
Pedals	UNBRANDED,
Wheels	BONTRAGER, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12Â mm thru axle, 29""
Shifters	SRAM, SRAM AXS POD,
Kickstand	UNKNOWN, Unknown
Front Brake	SH, SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM CentreLine, 6-bolt, round-edge, 220 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Brake	SH, SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc SRAM CentreLine, 6-bolt, round-edge, 220 mm // SRAM CentreLine, 6-bolt, round-edge, 200 mm Max brake rotor size, Disc brake with hydraulic actuation
Rear Derailleur	,
Crankset	SRAM, SRAM GX, 160 mm length
Chain	SRAM, SRAM GX Eagle, T-Type, 12-speed
Handlebar	BONTRAGER, Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem	BONTRAGER, Bontrager Elite, 35 mm, 0-degree, 45 mm length
Bartape / Grips	BONTRAGER
Seatpost	BONTRAGER
Saddle	BONTRAGER, Bontrager Verse P3, chromoly rails // Bontrager Arvada, hollow chromoly rails, 138 mm width
Front Light	UNKNOWN
Rear Light	UNKNOWN
Battery Capacity	625
Battery Brand	BOSCH
Battery Model	BOSCH
Drivetrain Brand	Bosch
Sensor Type	PEDALFORCE

Please note: Manufacturers can sometimes change the specification of the products from time to time.
