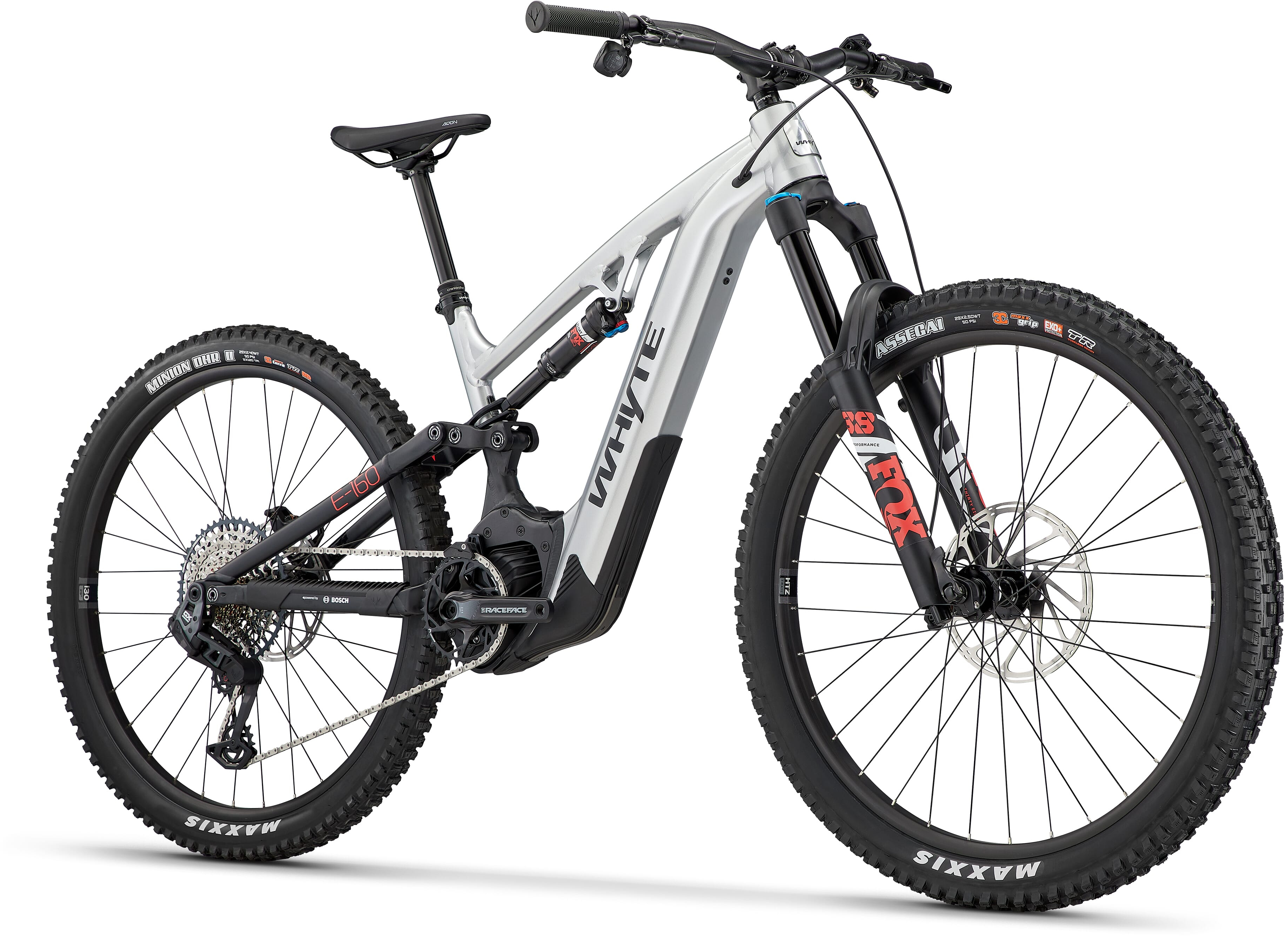

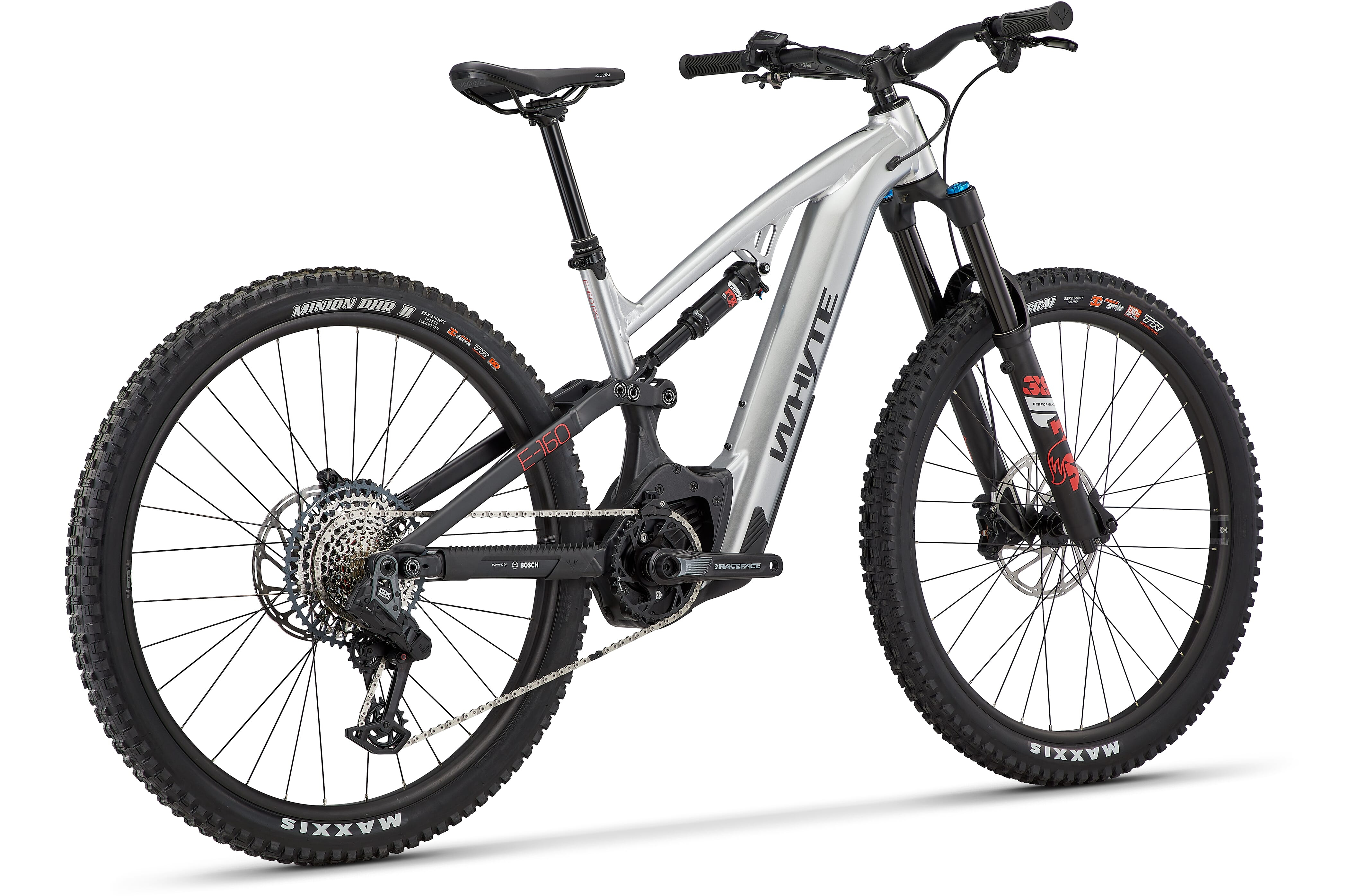

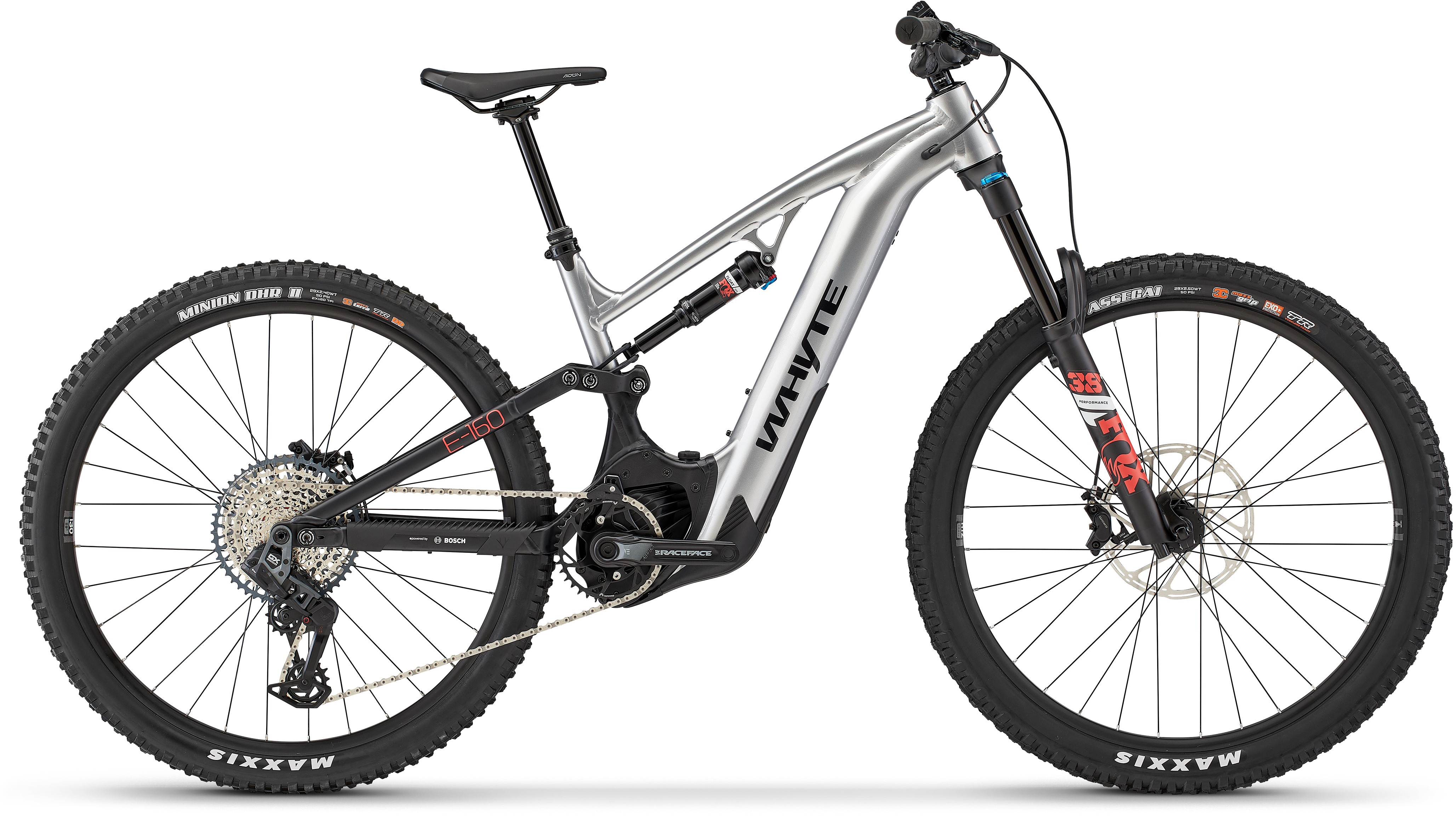

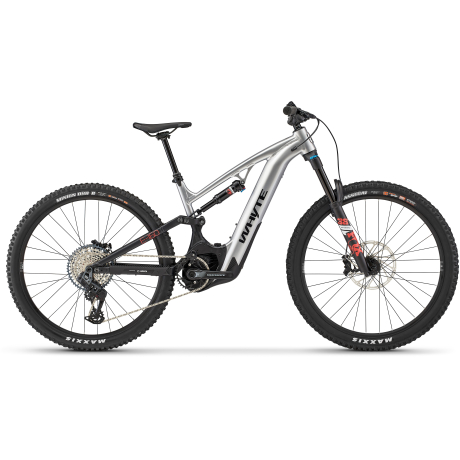

Whyte E-160 RS

£4,899.30  £6,398.99
30 days free insurance available

Finance available from £91.85 per month with V12 Finance

EXTRA SMALL
SMALL
MEDIUM
EXTRA LARGE
LARGE
Out of Stock ( Call for Availability )
Part Number:

WE160RS2MV4

GTIN/UPC:

5032489079470

E-160 RS 29ER Medium V4
eMTB Trail / Enduro
Gloss Silver with Matt Black

'

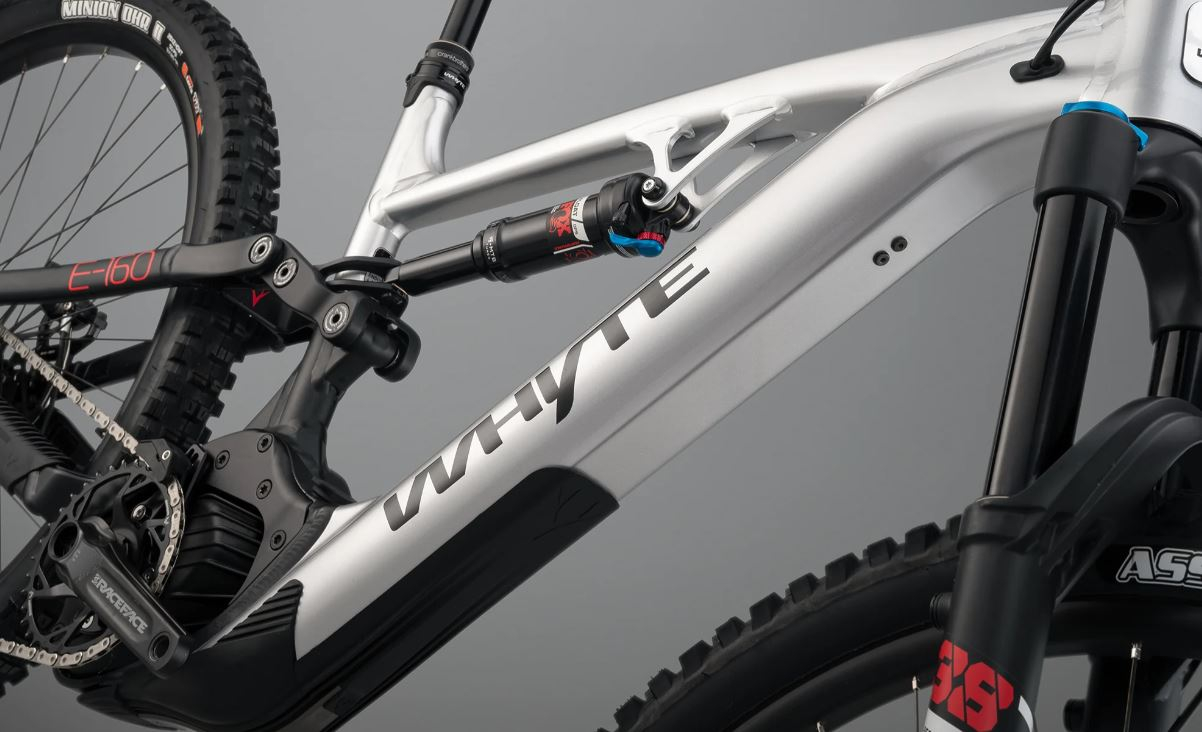

Frame 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Fork Fox Float 38, Performance, 160mm Travel, 44mm Offset with Grip Damper, 3pos Adjust, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle

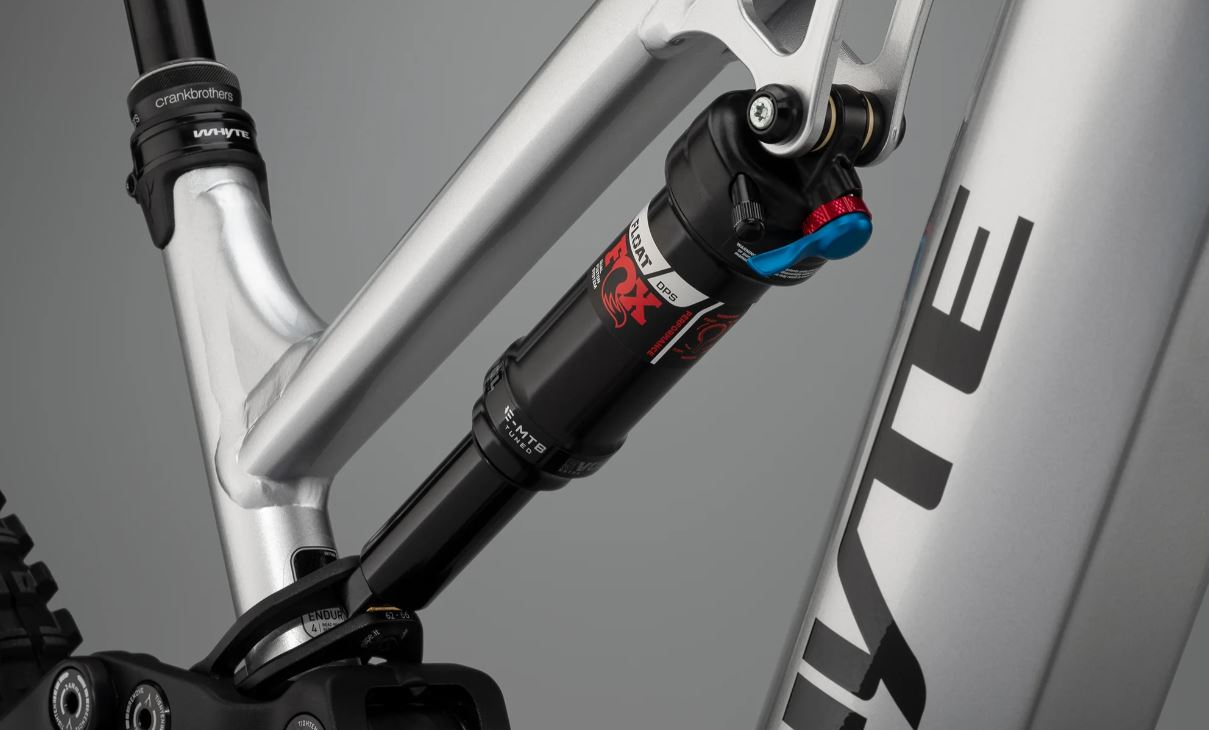

Rear Shock Fox Float Performance DPS, Evol LV, Custom tuned for Whyte, 3pos adjustable Compression and Rebound damping
Headset FSA No. 55/35 Orbit 1.5 ZS, 1.8"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings
Rear Hub Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Front Hub Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
Spokes DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Rims WTB HTZ i30 TCS 2.0 System, Asymmetric, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole.
Tyres Maxxis Assigai WT, TR, 2.5"" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 2.4"" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear
Shift Levers SRAM GX AXS, 2 Button, MMX, 12 Speed
Rear Derailleur SRAM GX AXS, 12 Speed
Cassette SRAM XG-1275 Eagle, 10-50, 12 Speed
Chain SRAM GX Eagle, 12 Speed
Crankset Whyte, Forged Alloy, 165mm, direct mount 36T
Seatpost Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel, High-Line Ball Socket Remote Lever
Seat Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Handlebar Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 780mm Wide
Stem Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
Grips Whyte Lock-on Enduro Grip
Front Brake SRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
Rear Brake SRAM Code R, 4 Piston with Sintered Metal Pads, 200mm Disc
Brake Levers SRAM Code R, MMX
Shock Stroke and Sag Setting 57.5mm/16mm
Reducer Bush Widths 25mm
Eye to Eye Length 230mm
Ebike Motor Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 250 w nominal power. Features 4 power settings including Tour+ that allows riders to focus on riding whilst being economic on power usage and eMTB mode which automatically adjusts
Battery Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than 6 hours, and just over 2 hours for half charge. Supplied with Bosch's 4A Compact Charger
Battery Charger Charger 4A (230V)

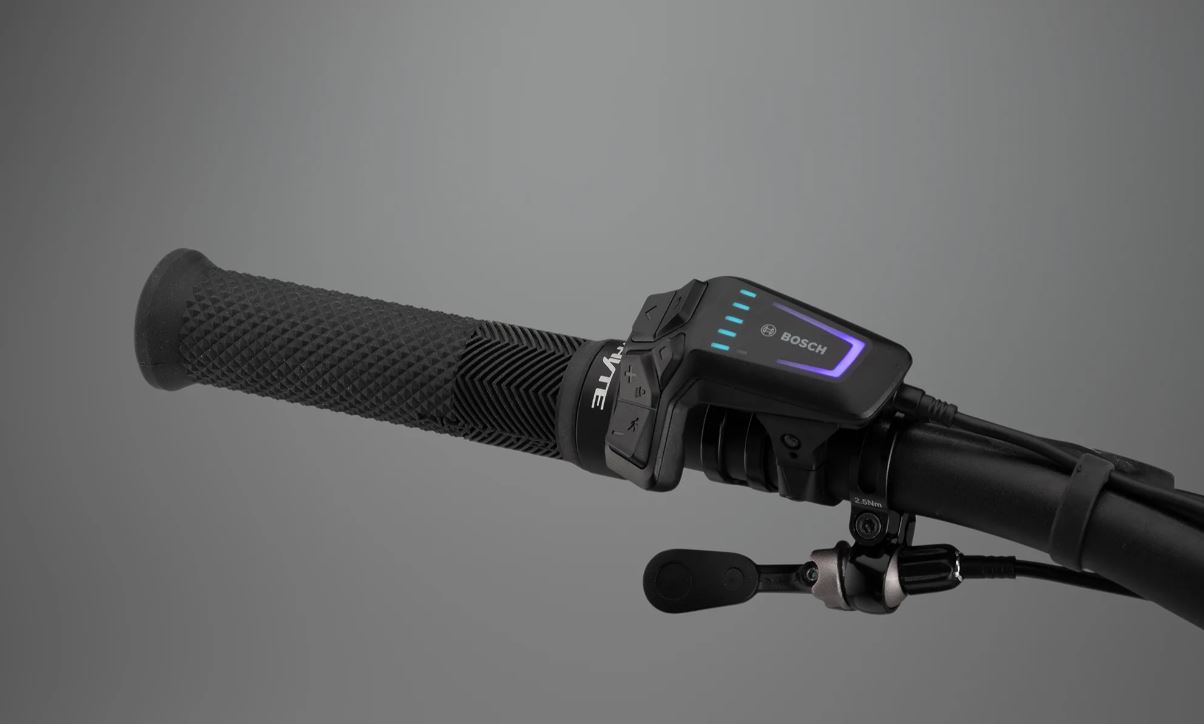

Display Bosch LED Remote allows for easy use and visibility for the rider, also connecting to Bosch’s eBike Flow App to give the rider even more insight and control at their fingertips.
'

Please note: Manufacturers can sometimes change the specification of the products from time to time.

HEAD TUBE ANGLE 64.8 (64.2)
SEAT TUBE ANGLE 75.5
TOP TUBE HORIZONTAL 607.3
BB HEIGHT ABOVE GROUND 344 (336.2)
STANDOVER HEIGHT 771
WHEELBASE 1234.8
CHAINSTAY LENGTH 446
SEATPOST DIAMETER 30.9
HEAD TUBE LENGTH 105
SEAT TUBE LENGTH BBC2T 420
STACK 631.5
REACH 455
